SHOW n TELL PROJECTS


Mike Hardy

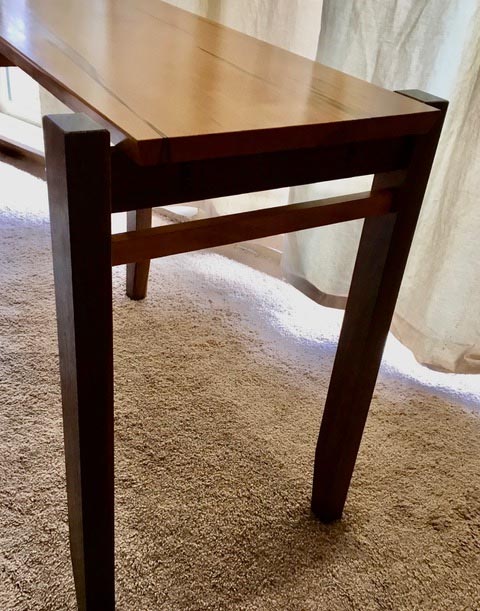

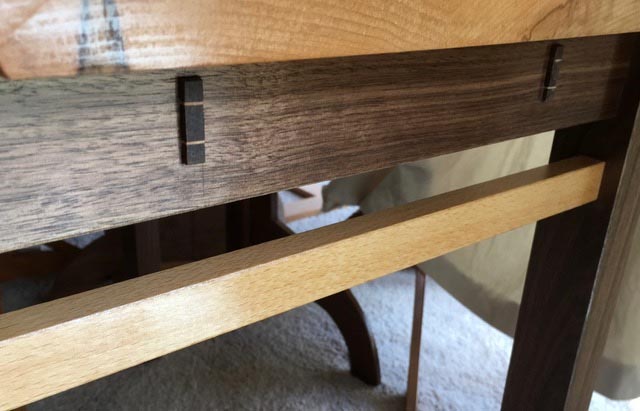

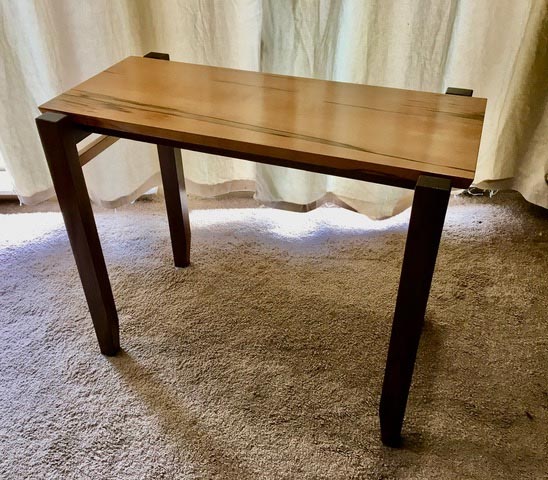

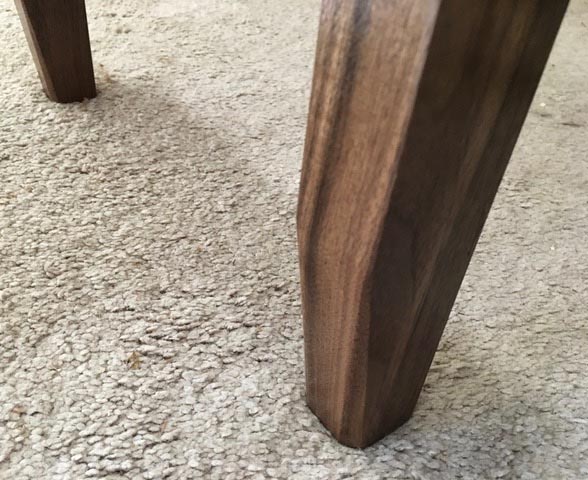

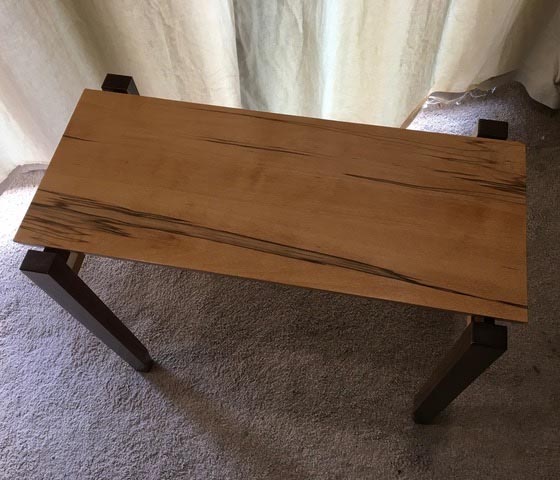

Walnut and pecan side table. The inset long aprons have through tenons wedged with pecan. 30" long by 12 1/4" wide top. Waterlox finish.


Rick Spacek

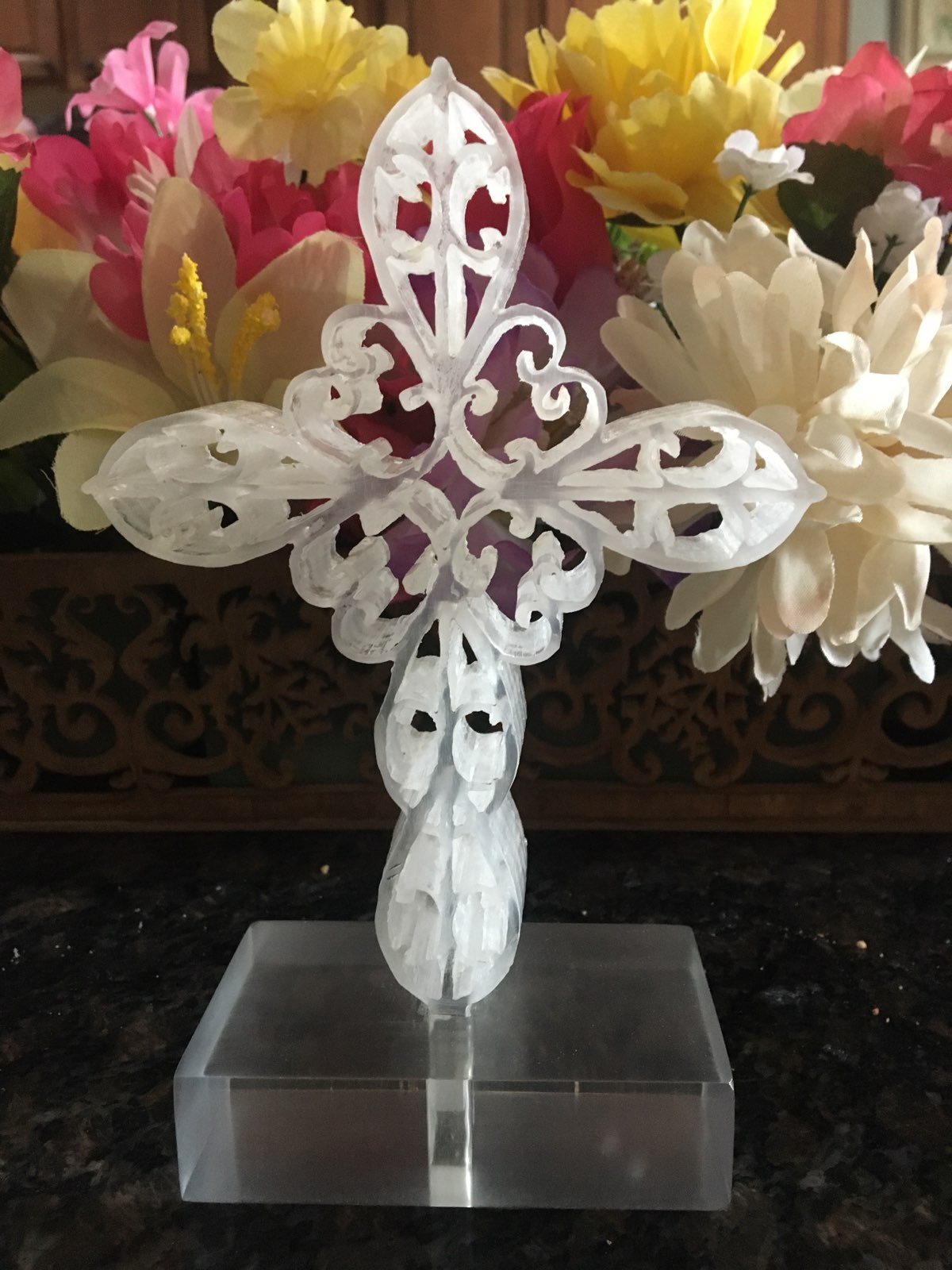

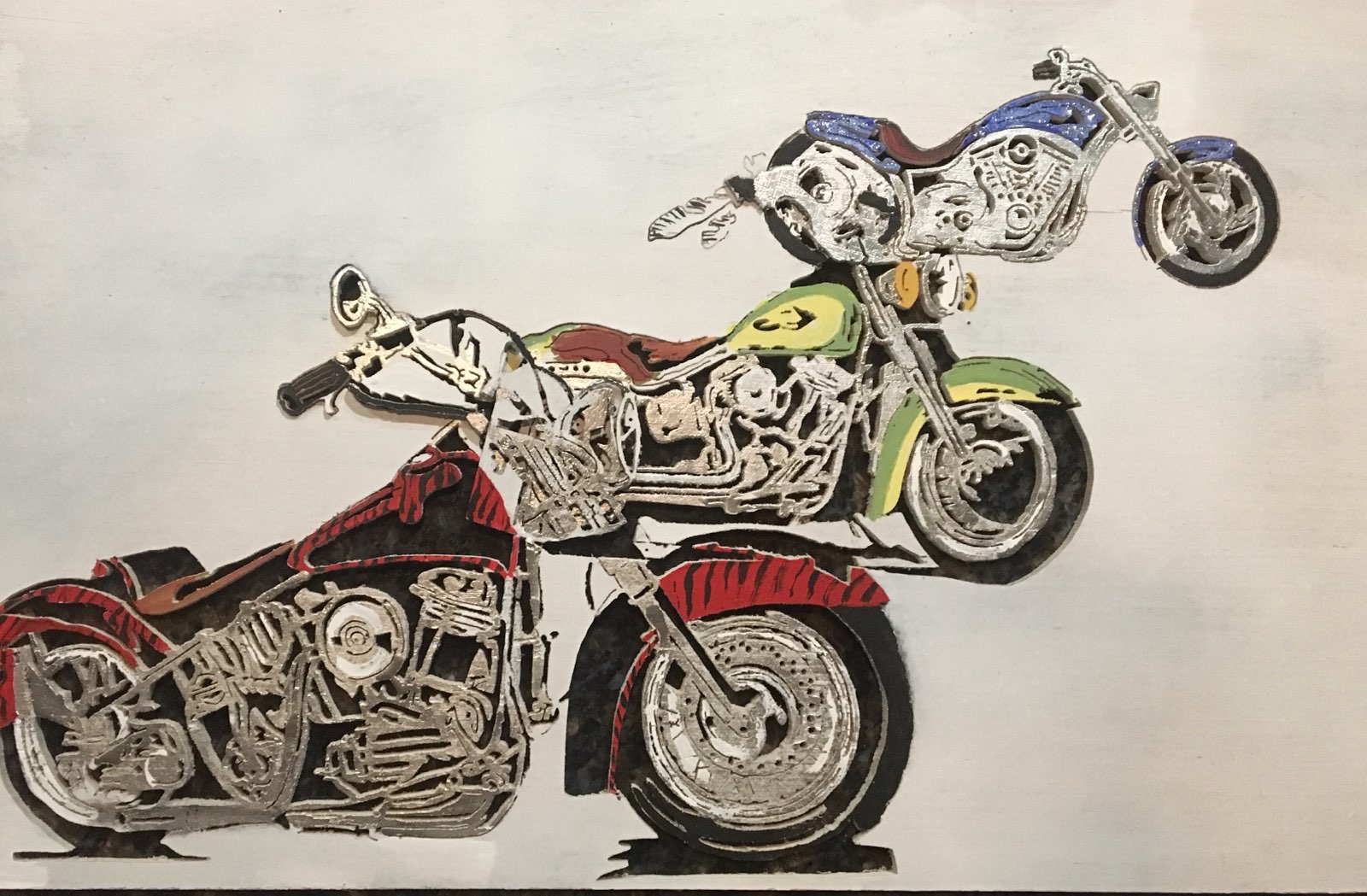

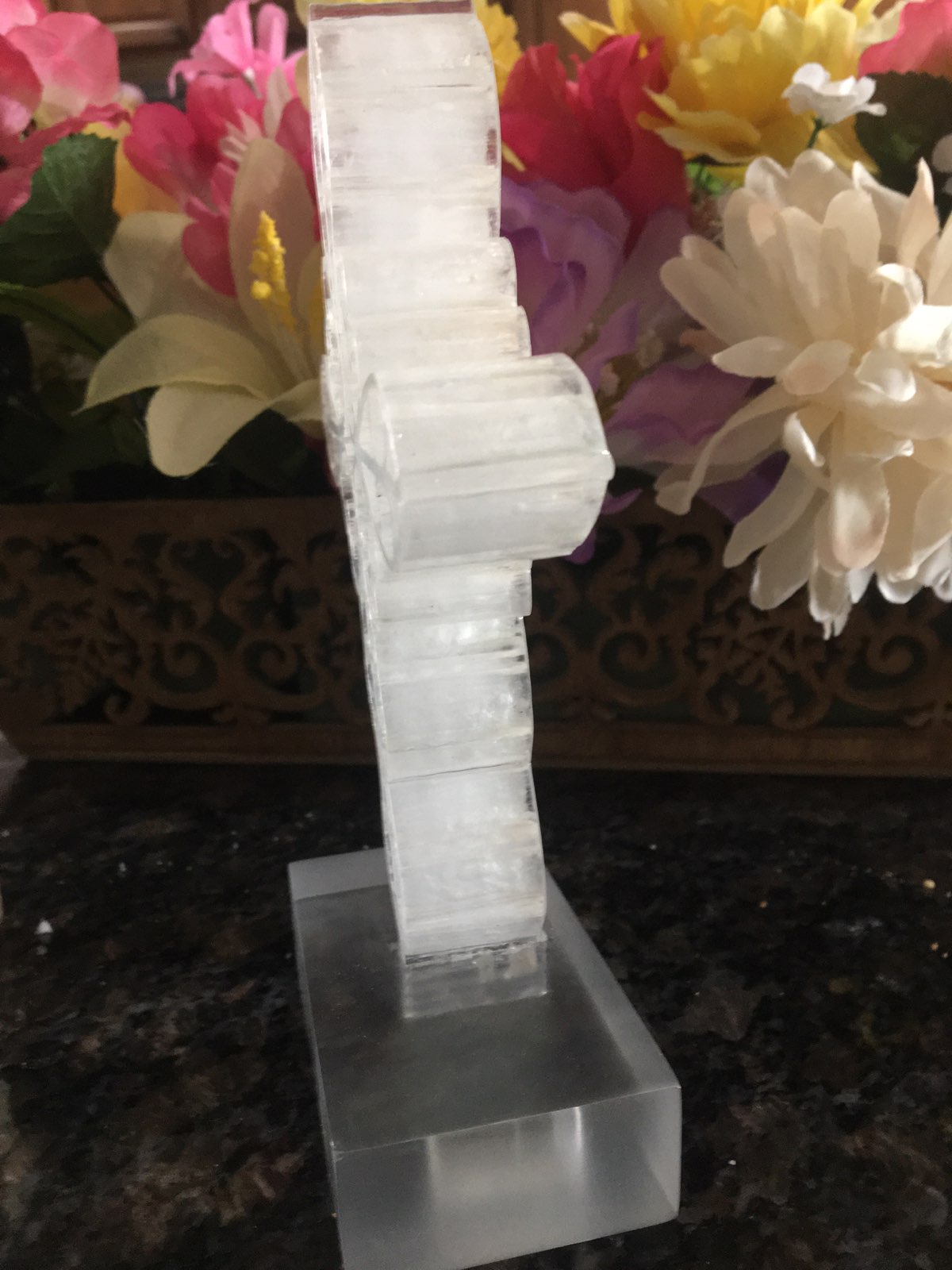

Scroll sawed cross and motorcycles,

Bob Wink

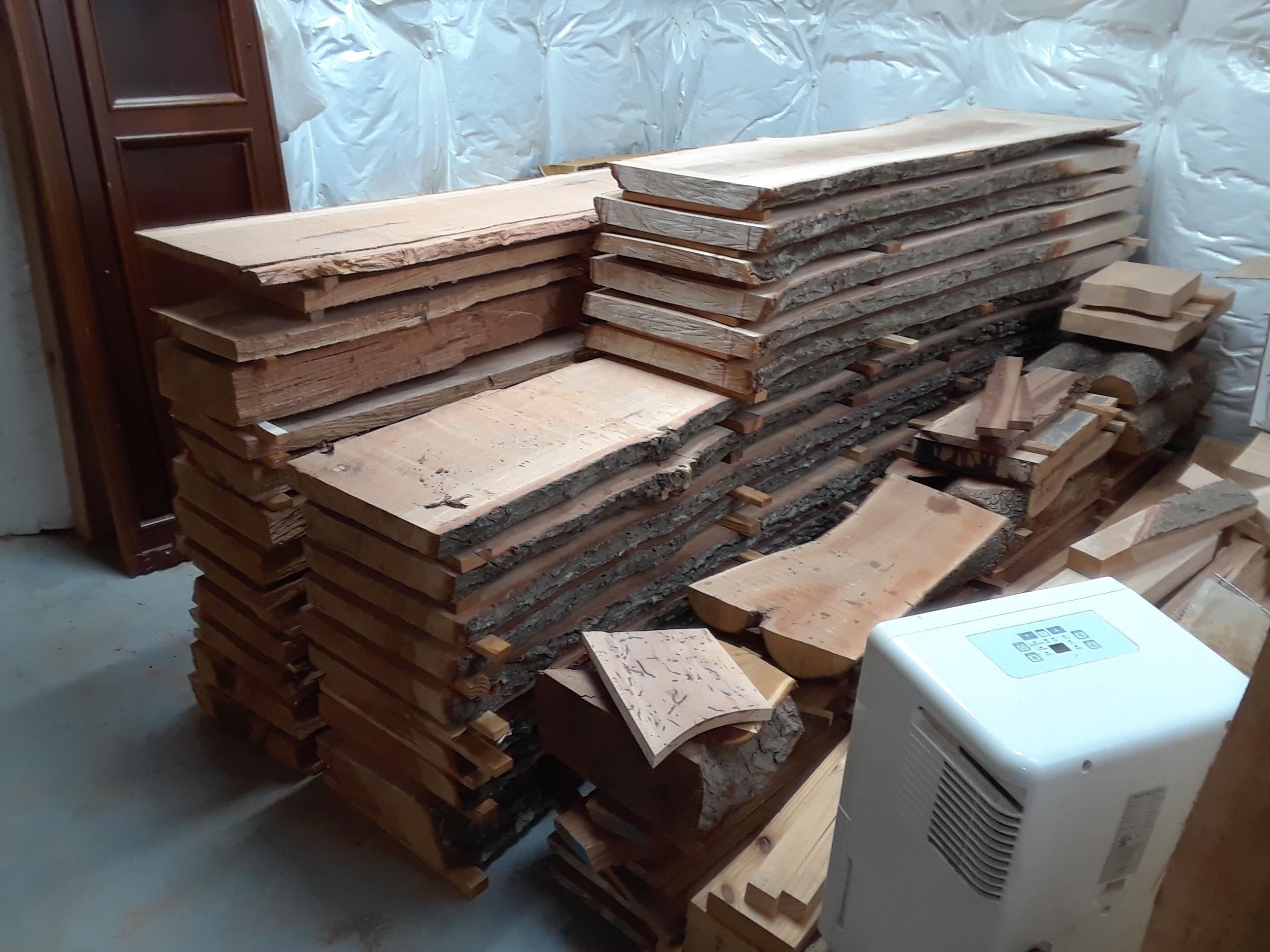

As Johnny Cash might sing today,"I'm stuck in workshop and time keeps draggin' on".

Wilson Carneiro

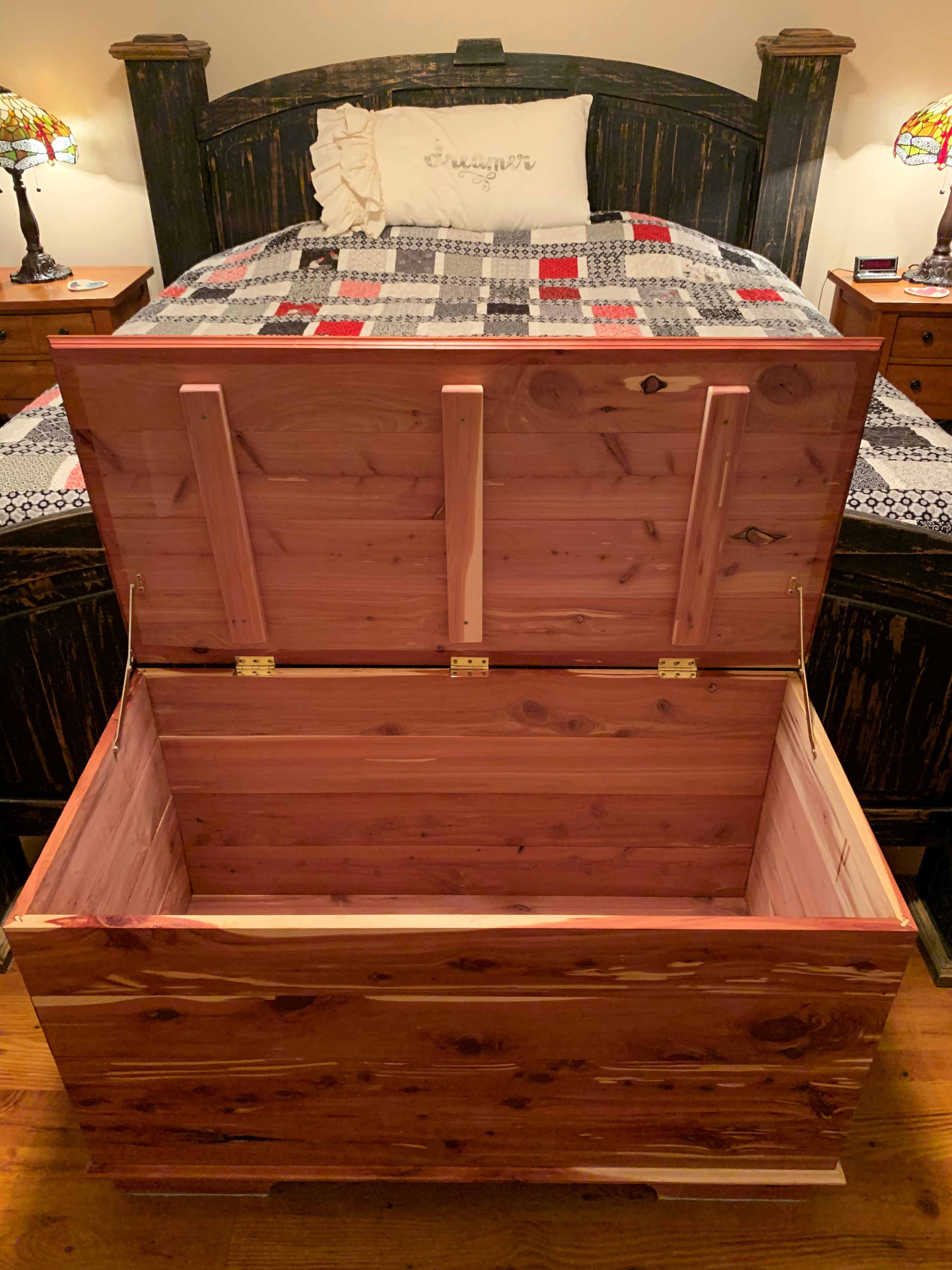

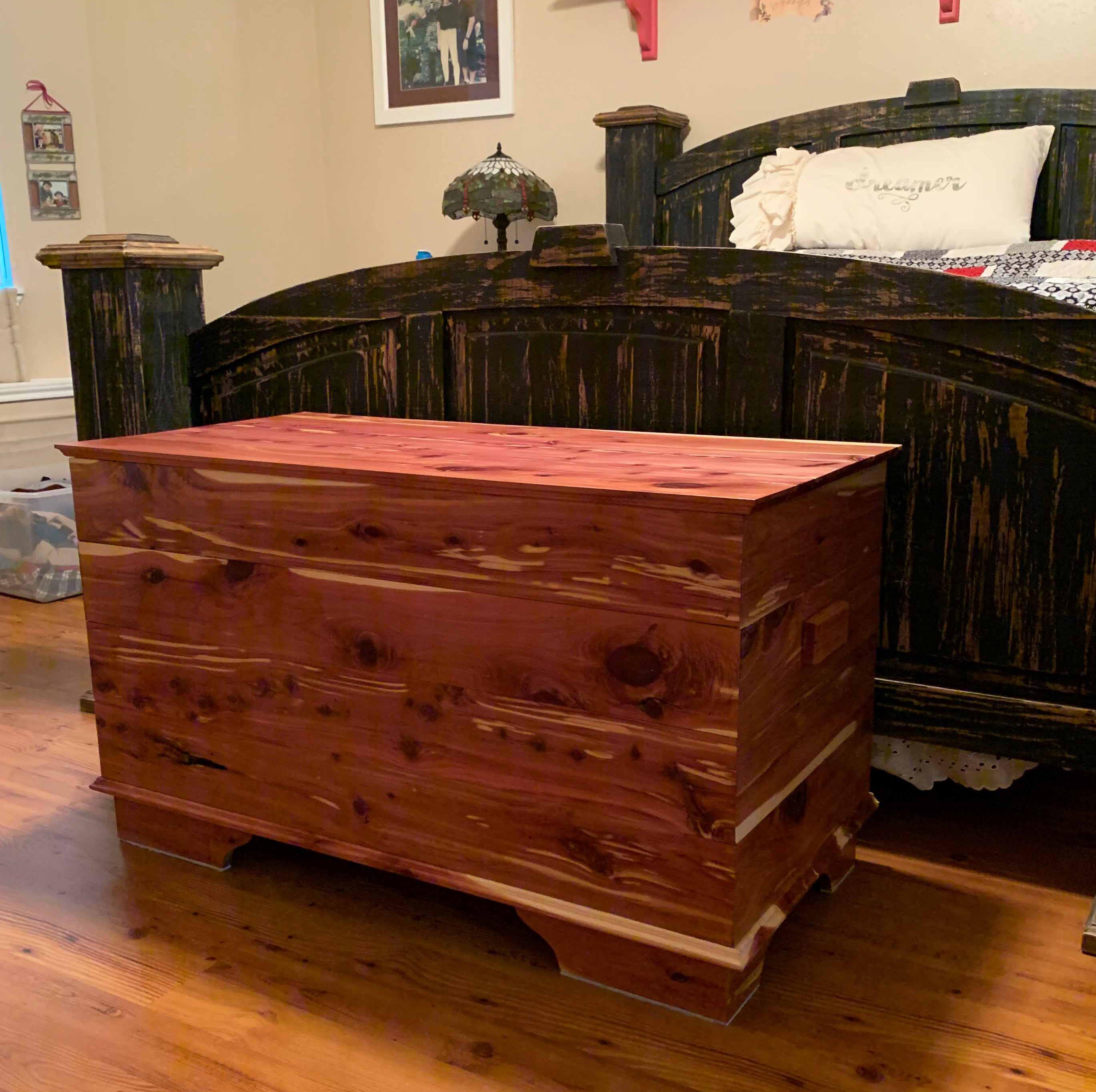

Just thought I’d share a couple of photos of the cedar chest I made for my wife so this way she can keep her quilts and embroidering that she makes. This was the first time I ever made something using hidden splined miter joints. They weren’t the prettiest, but not bad for the first time. The design was based off of a website showing Amish styled cedar chests. I polyurethaned the outside, but left the inside as is so that the cedar smell still comes out.

The hinges and screws shown in the picture are the only hardware that are used. Everything else is put together using dowels and glue. I placed wooden handles on either side but I doubt I’ll be lifting this up anytime soon even when it’s empty. The darn thing is heavy!


Steve Wavro
After making several puzzles for my grandchildren, I got the idea to make a storage rack for them to keep the puzzles together and out of the way when not in use. I designed it to match the puzzle dimensions and hold up to 12 puzzles. All the puzzles and the storage case were made from Wink1 wood.

Gary Rowen

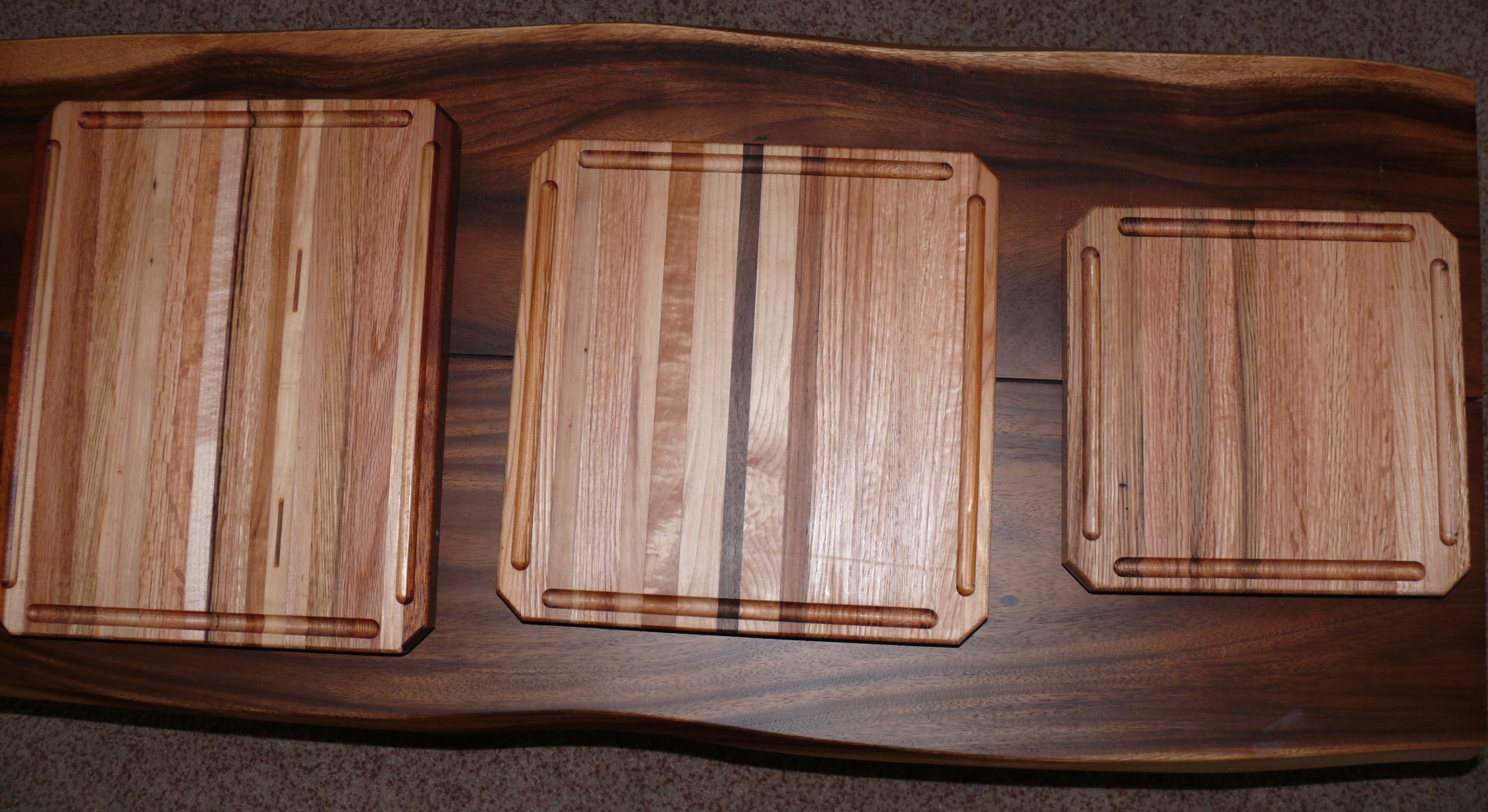

Ripping 1 ¼ inch slats from leftover short ends of various boards, then standing them on edge, Gary Rowen crafted three cutting boards finished with mineral oil. Gary will keep one for himself and give the other two to his son and ds


David Janowitz

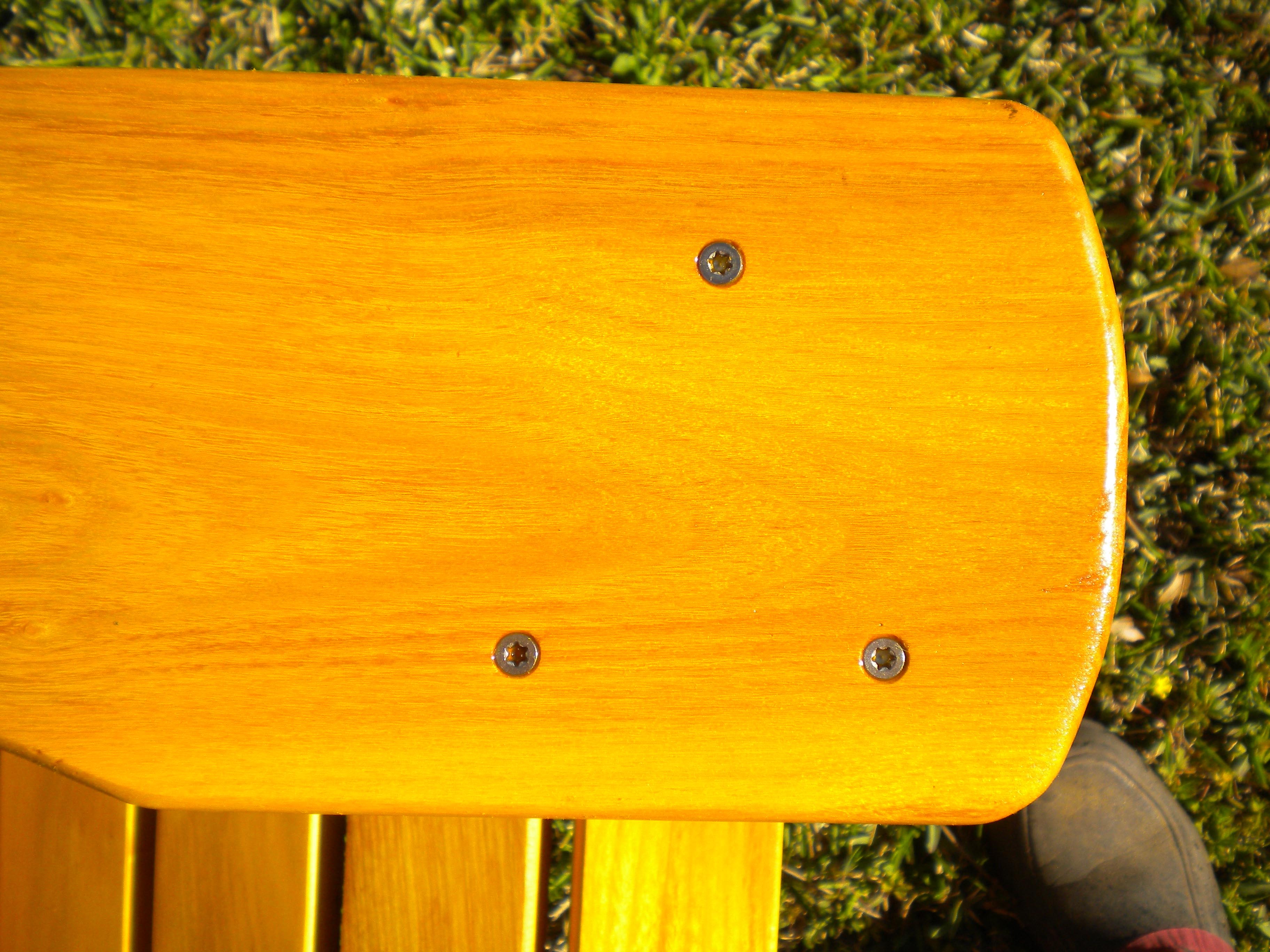

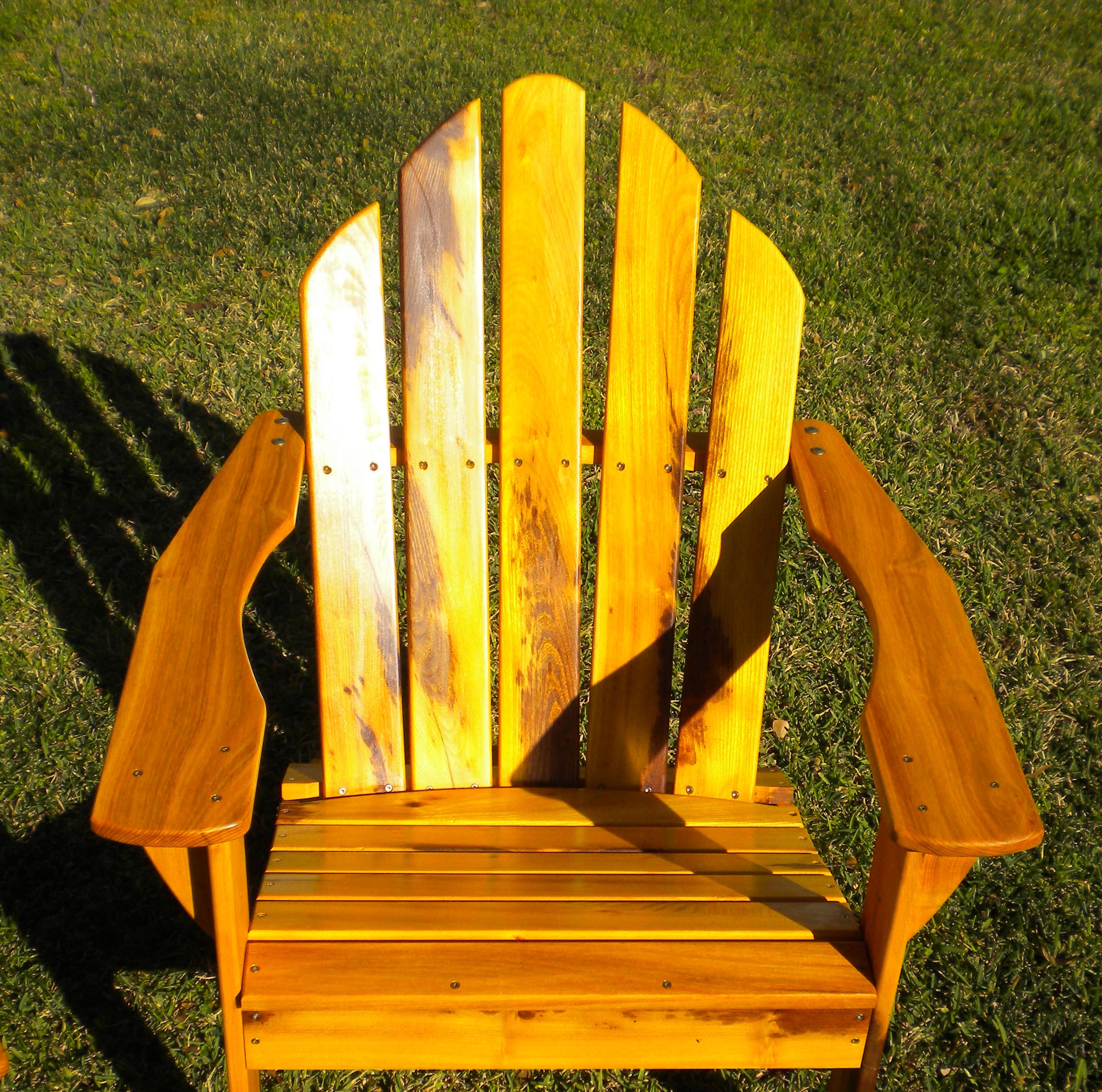

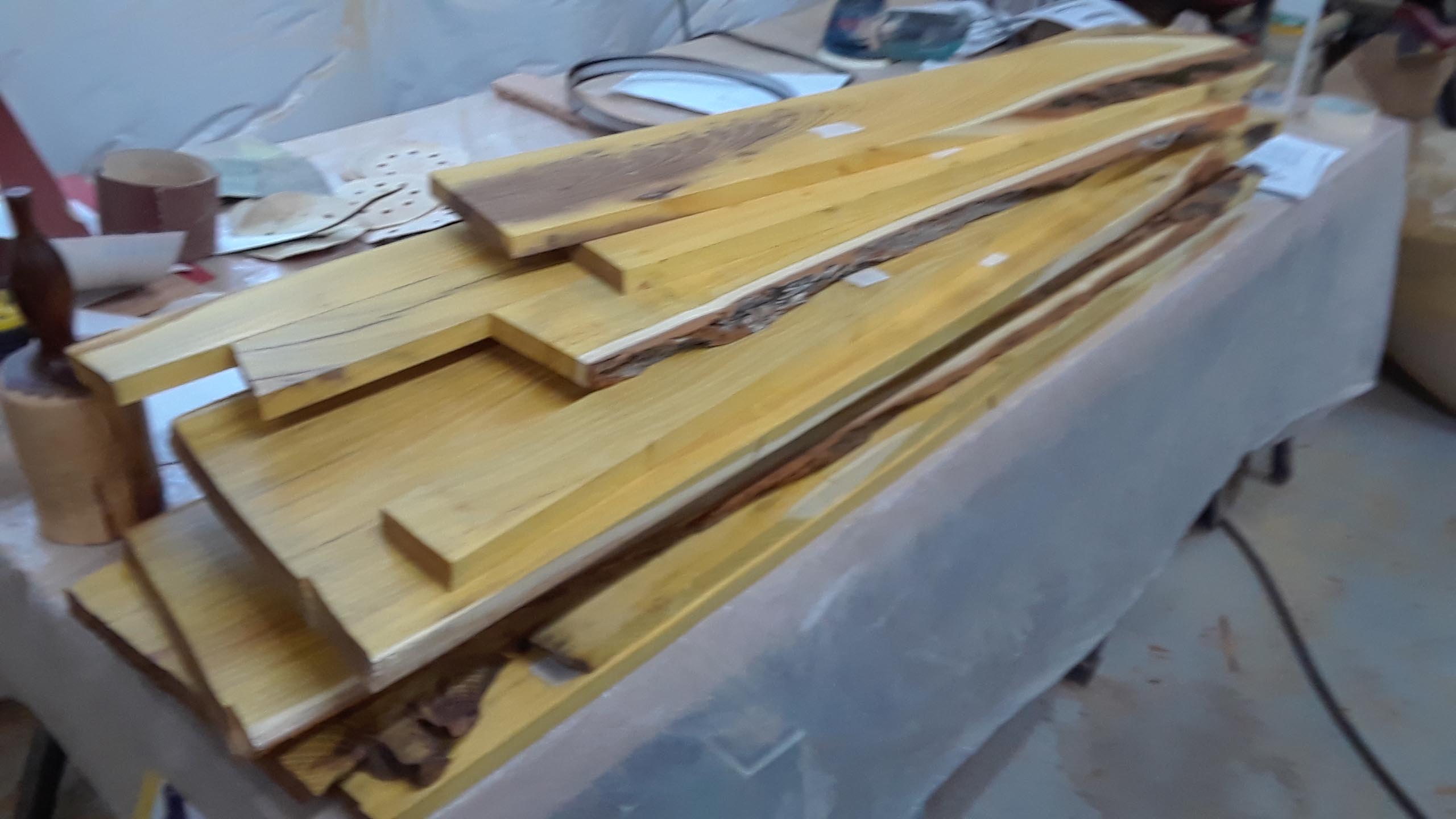

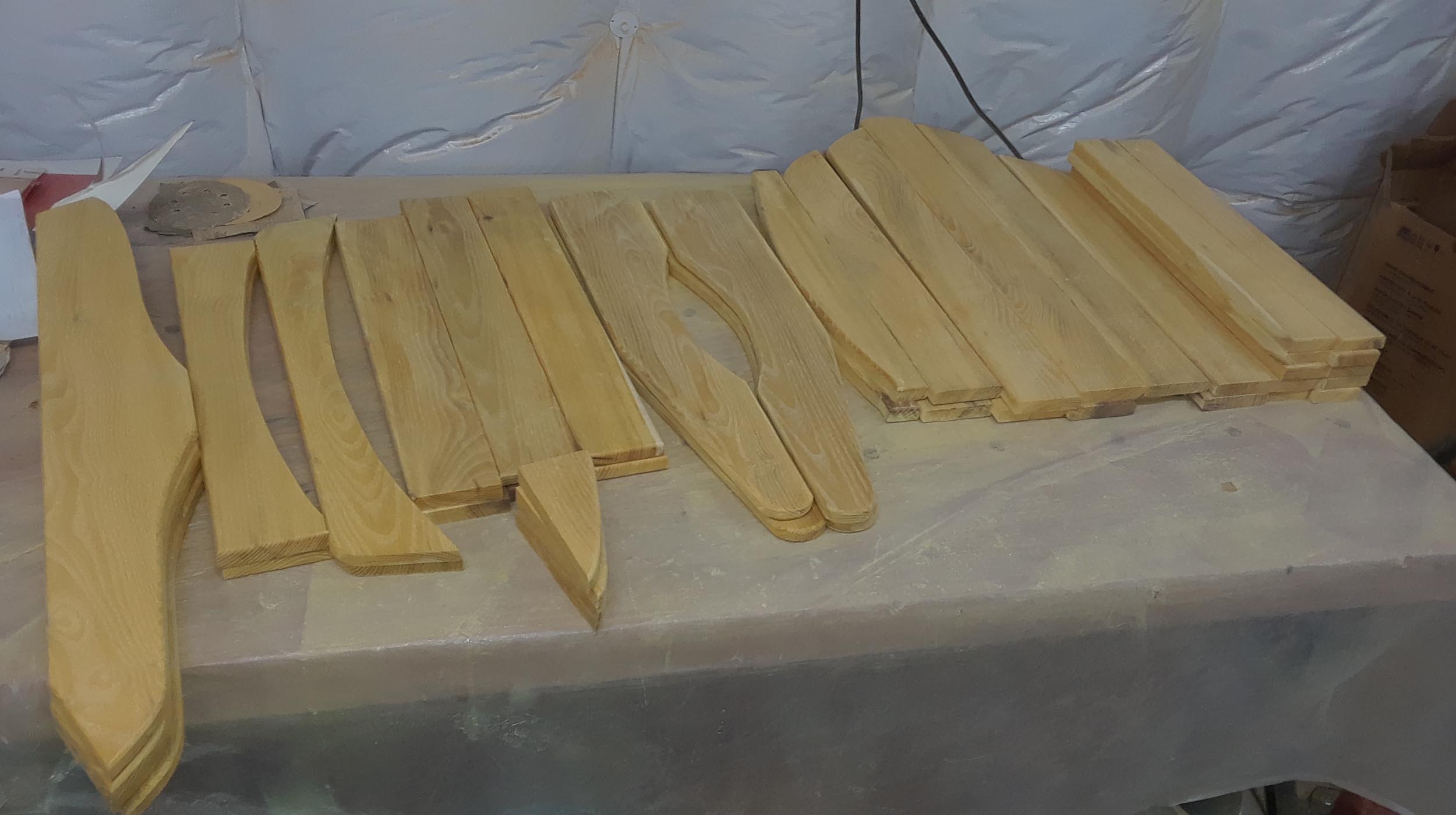

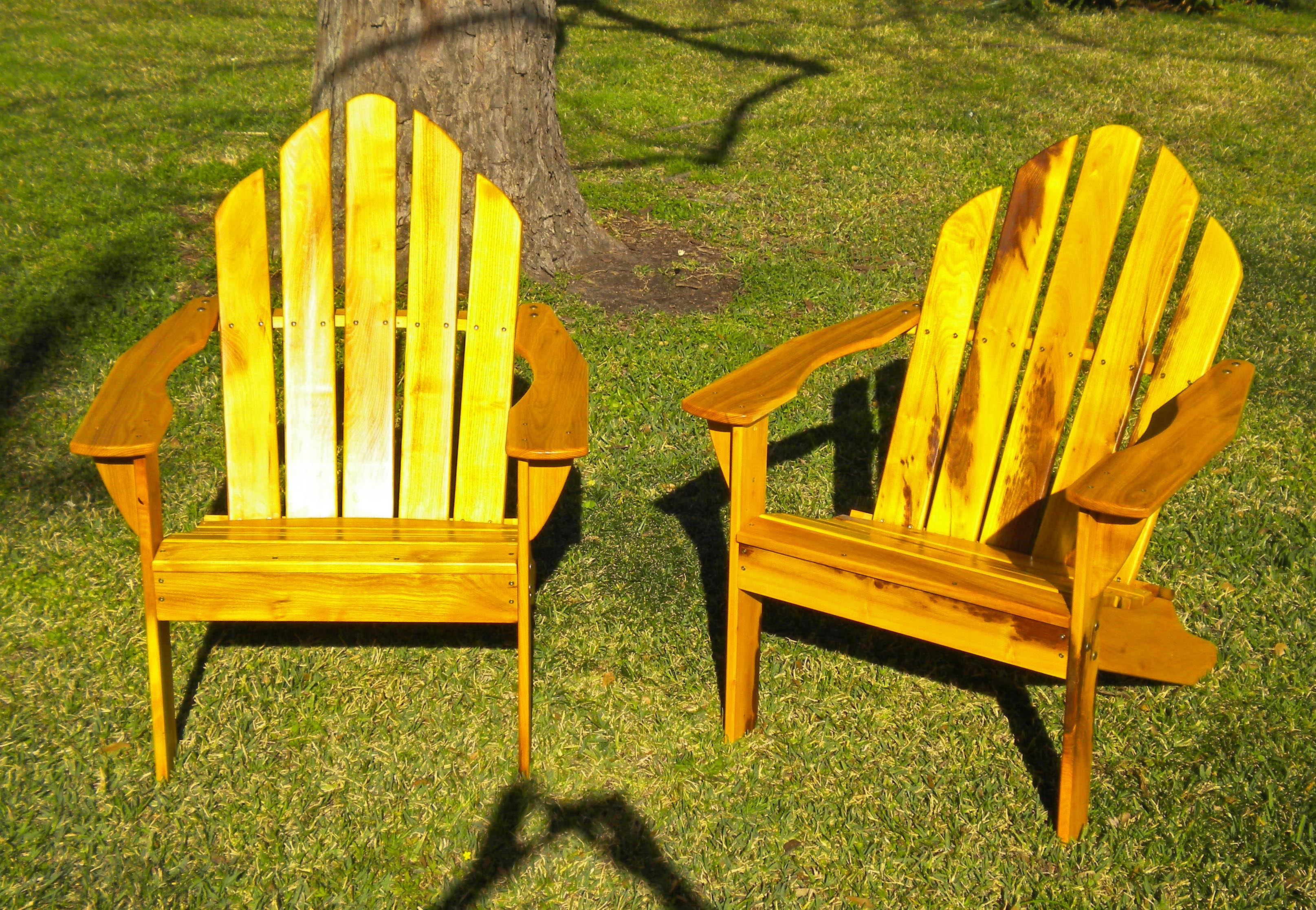

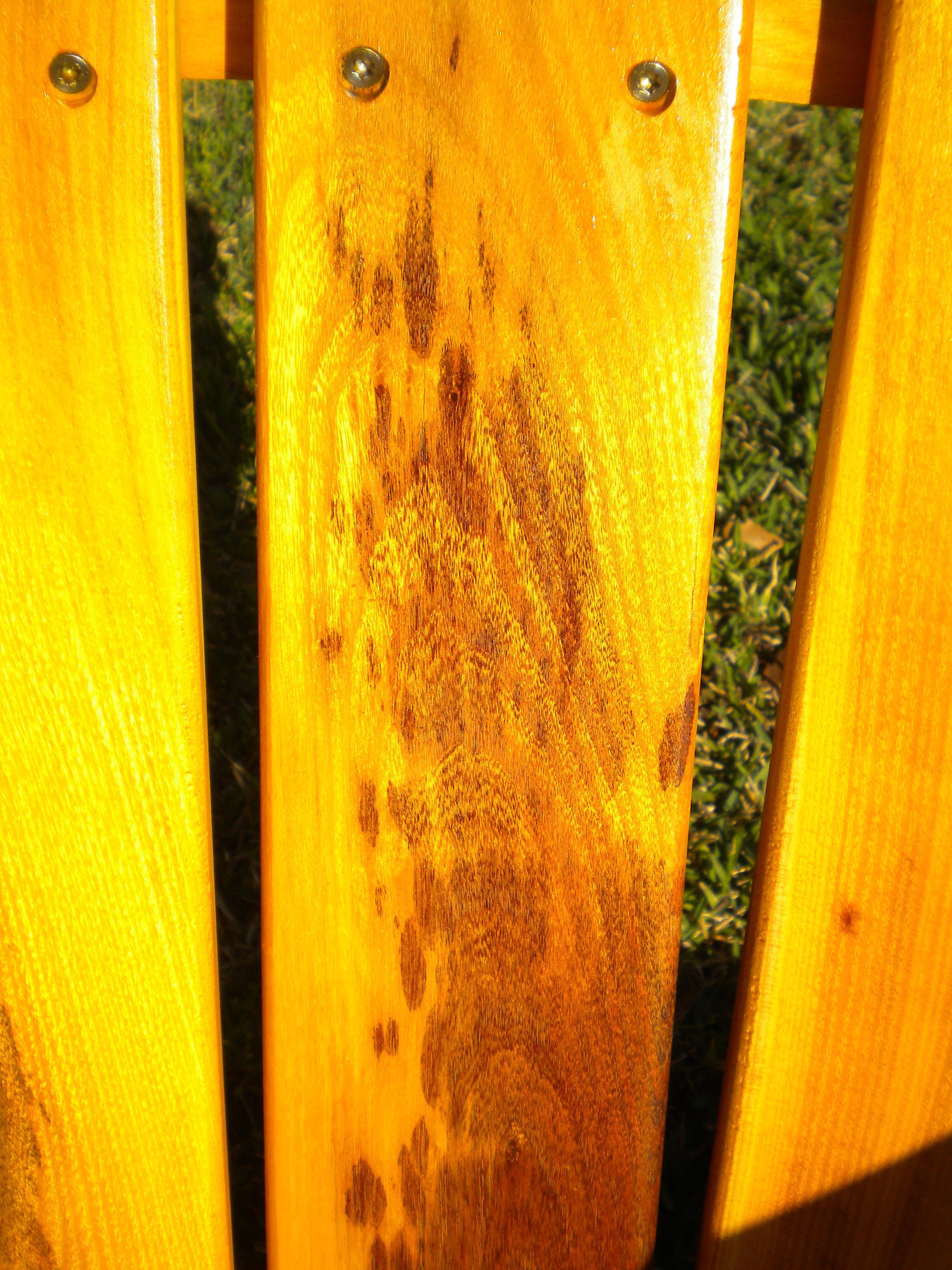

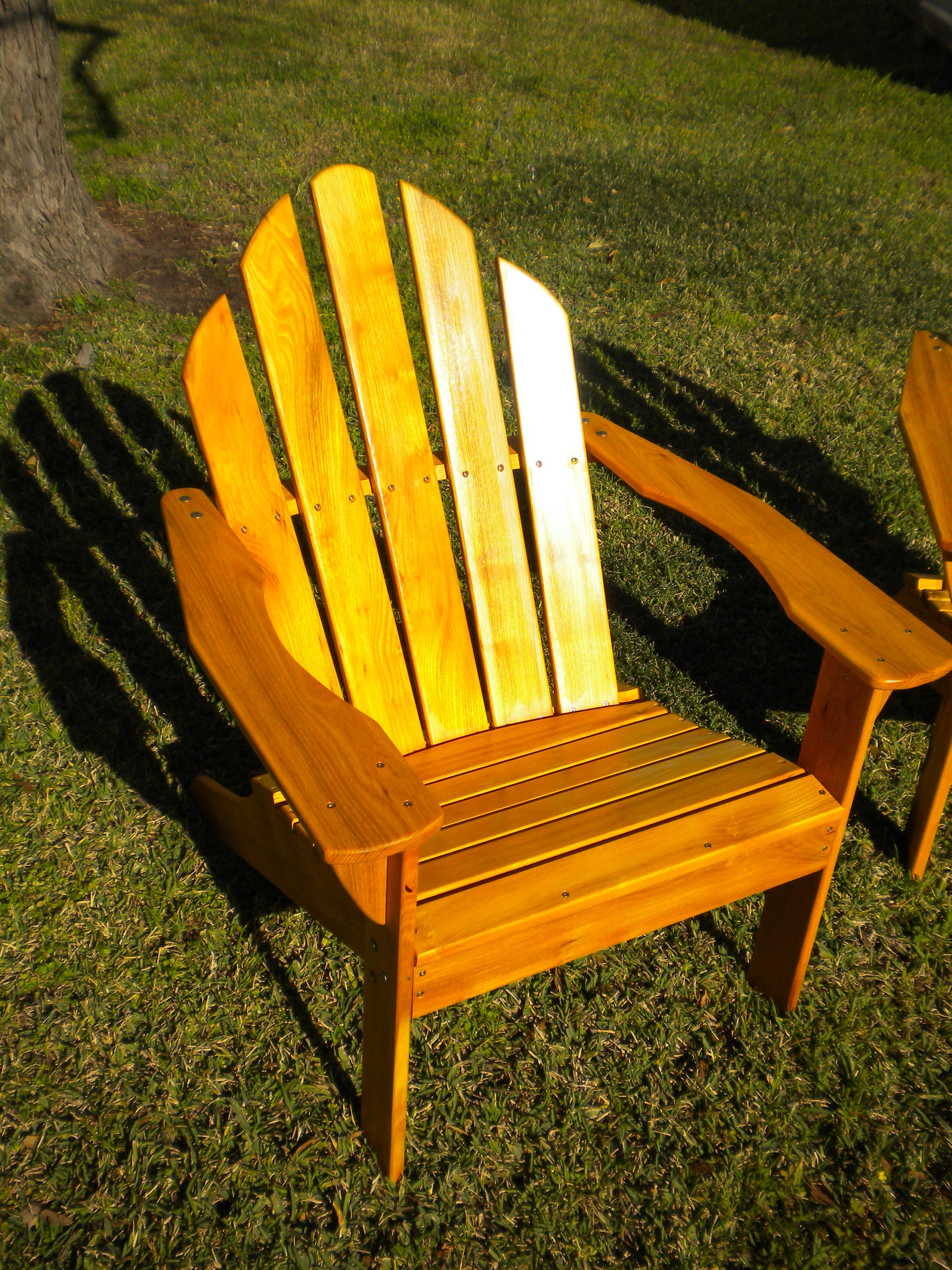

First, two Adirondack chairs out of Osage orange.  I spent way too many hours rough cutting the parts from wood with large checks holes, and knots.  Over one third of total construction time in initial milling, starting with some pieces as in the first photo.  I used all stainless steel hardware, both the screws, and the nuts and bolts that connect the front legs to the sides/rear legs, and the arms to the rear upper cross piece.  I used all the wood that has some dark brown water marks in one chair, but inside of a year, both will be all that dark brown, especially in the sun.  They are finished with Olympic maximum waterproofing sealant.  It is top rated by consumer reports for clear outdoor finishes, though it provides much less protection than a semi-transparent or solid stain.  In reality, it is not really a waterproofing, nor sealant, but does give some protection from the weather, and is very easy to apply.  Interestingly, it is also not clear, but gives a bit of amber brown tint.

Denis Muras

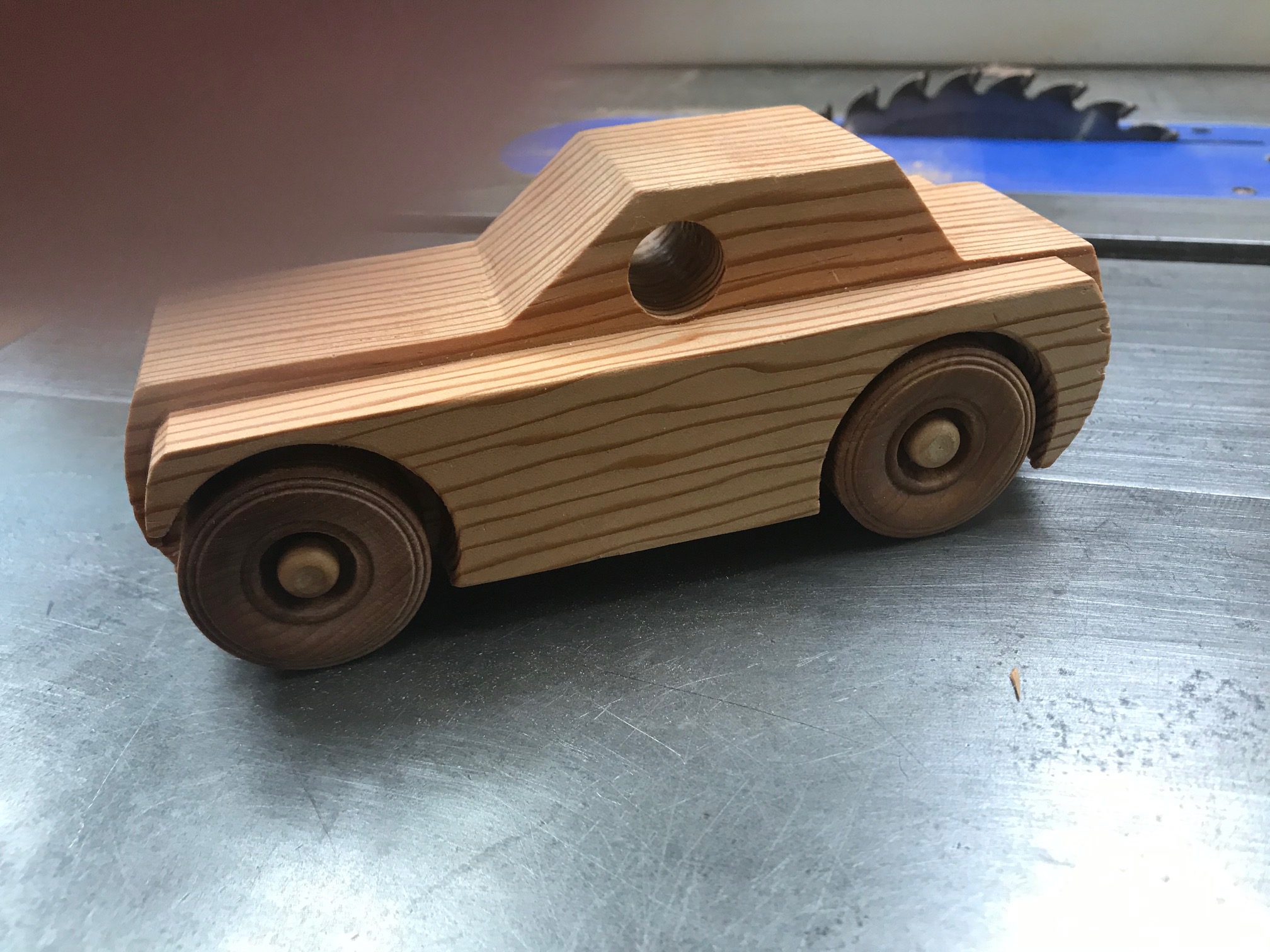

The Mustang from Chris Shwartz Designs, made from fir. A note to Chris, take some of the toy designs to the next level. I added sides to make fenders and used more realistic wheels.

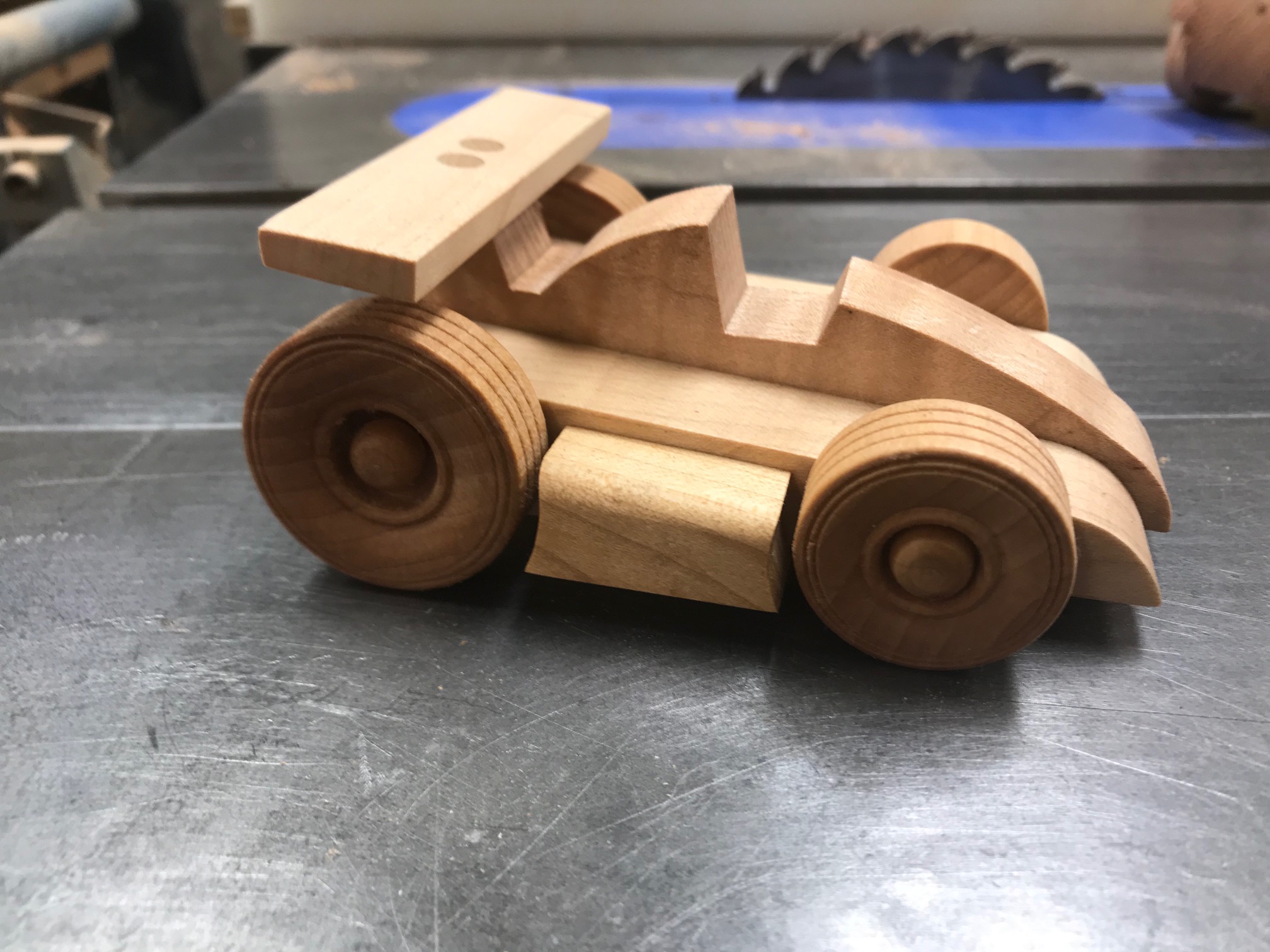

The two race cars are made from maple and walnut. The plan comes from All Natural Toy Plans on Etsy. I made more and mixed and matched the woods, mahogany, cherry and others. They may be donated to our toy drive.


Lon Kelley

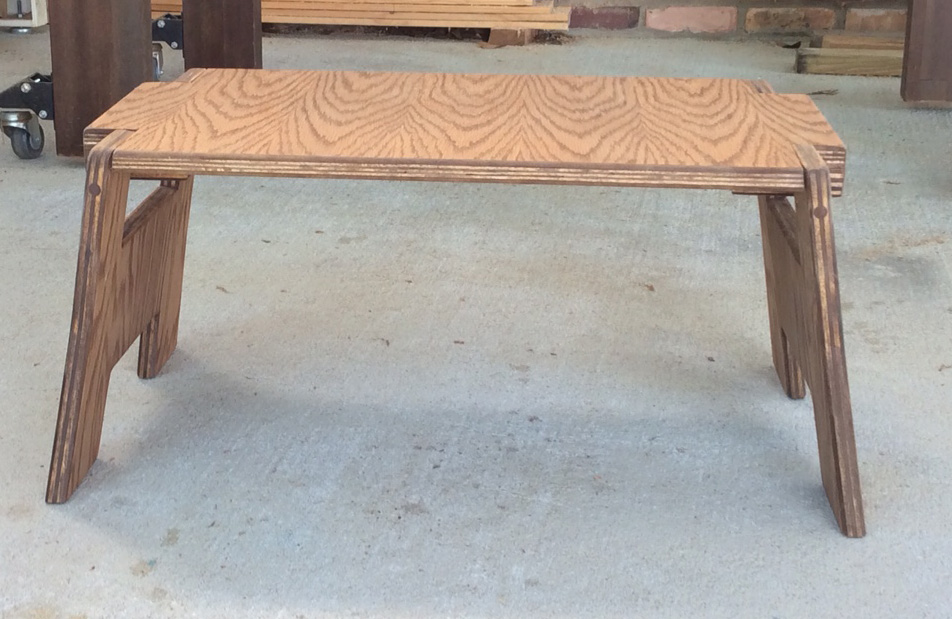

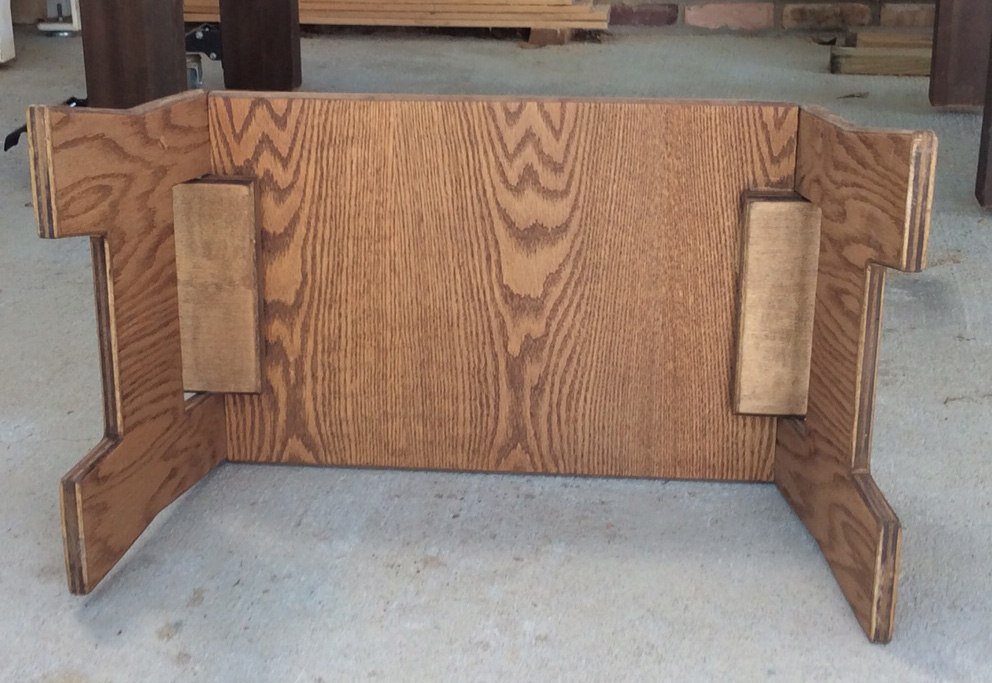

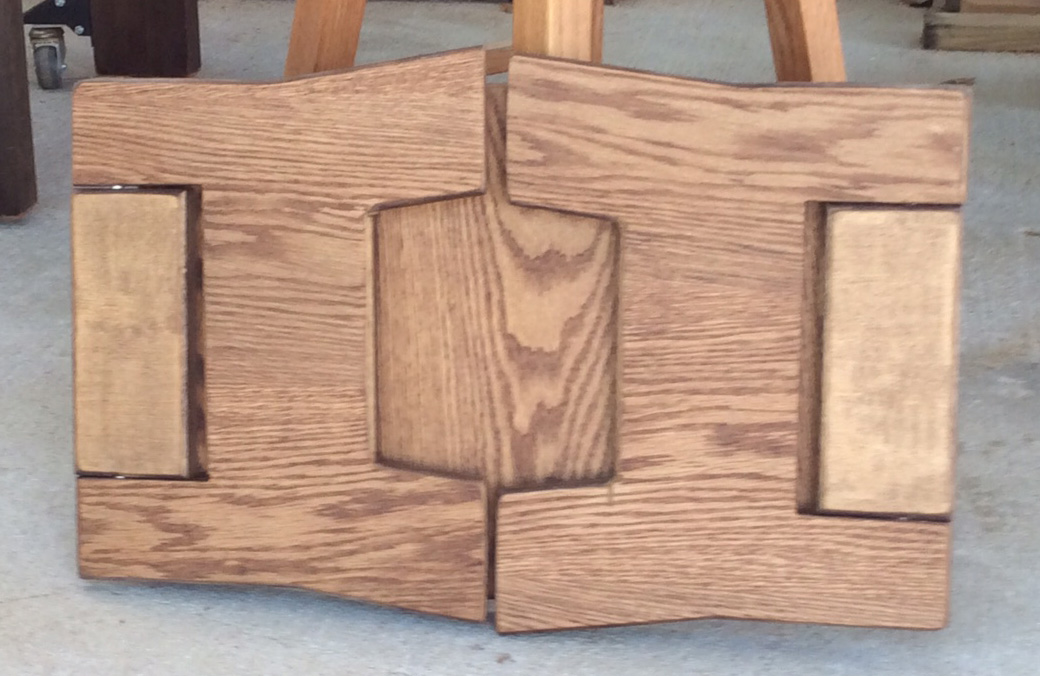

Folding stool made of Wink1 wood.  Note that Lon is demonstrating the sturdiness of his folding stool, a step above all others.

David Janowitz

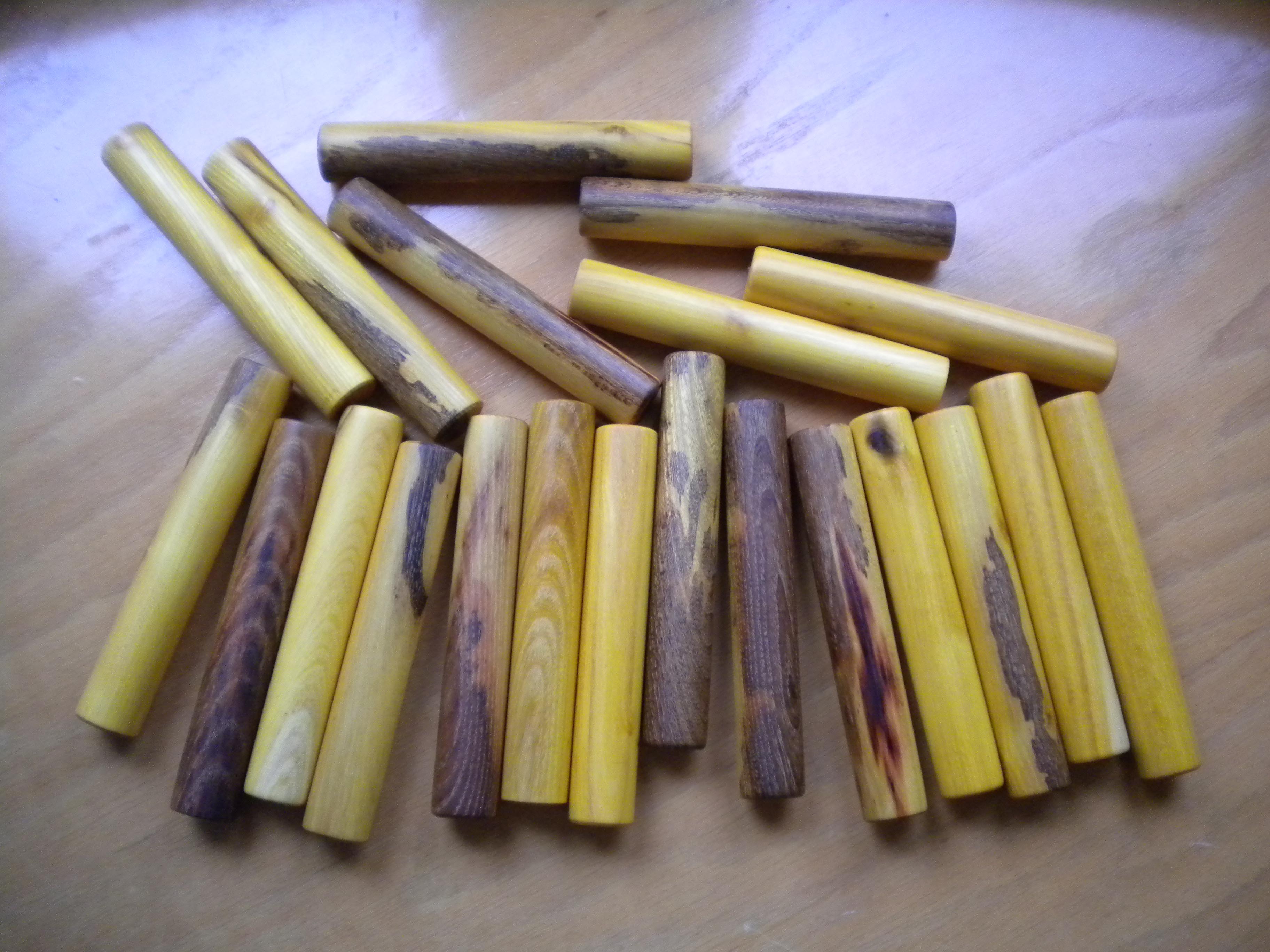

Hi Gang.  These are photos of some "cannoli rods"  for a restaurant worker.  She previously purchased an Osage orange rolling pin, and liked the wood.  These are hardly fine woodworking, but were good practice at making many uniform dowels on the lathe.  They took longer than I expected, about three hours for 21 of them, mostly because of the hardness of the wood.  I might have used maple, but I have lots of Bowdark, and could use scraps for this.  Each is 1" diameter by 6" long, with no finish.  They will be wrapped with cannoli shell dough and deep fried.  Many I saw on line were metal tubes.  As this is the older and more traditional material I believe they should stand up well, and be preserved by the hot oil.

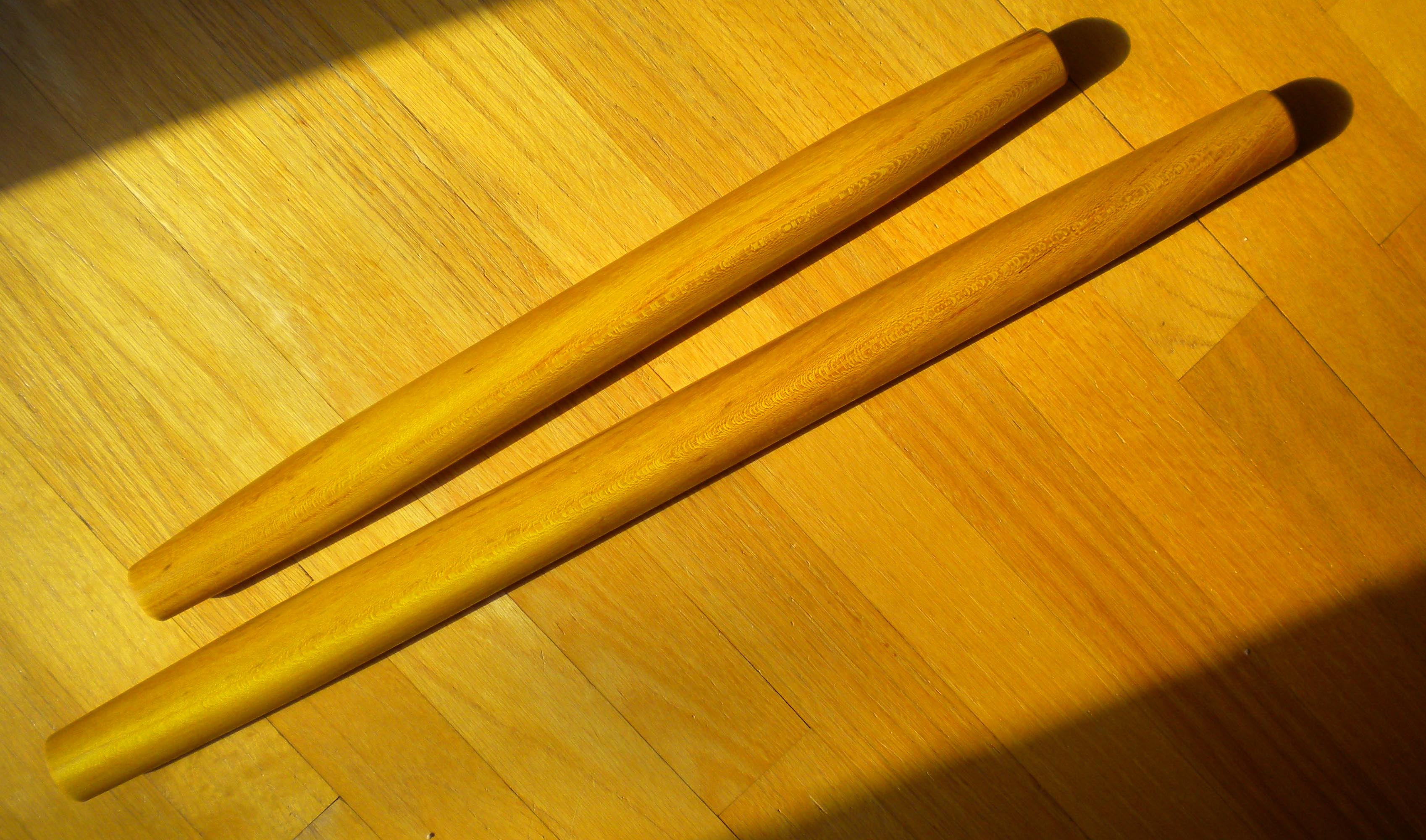

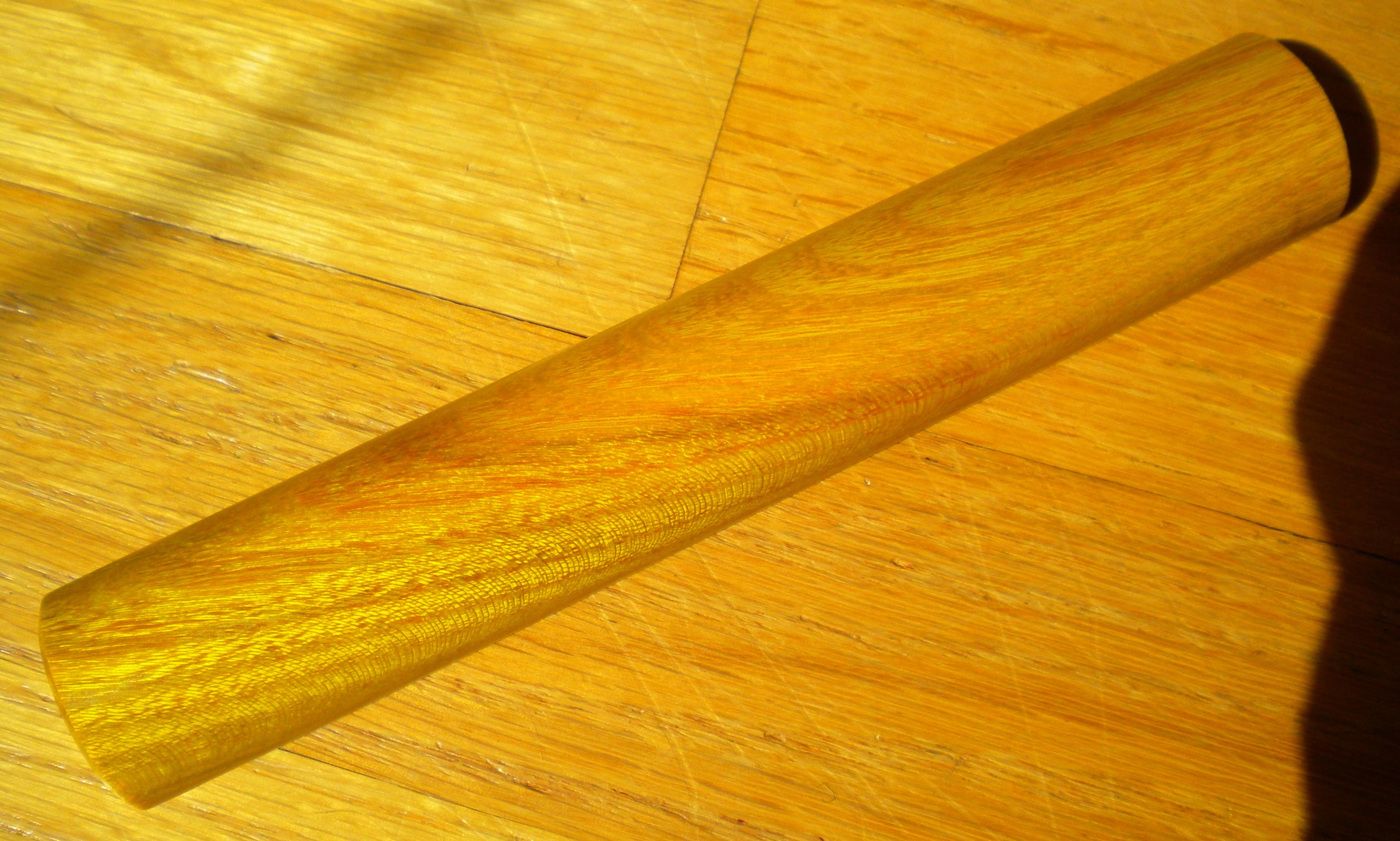

 I also show two French style rolling pins that show similar work to create, but are at least more than just dowels!


David Janowitz

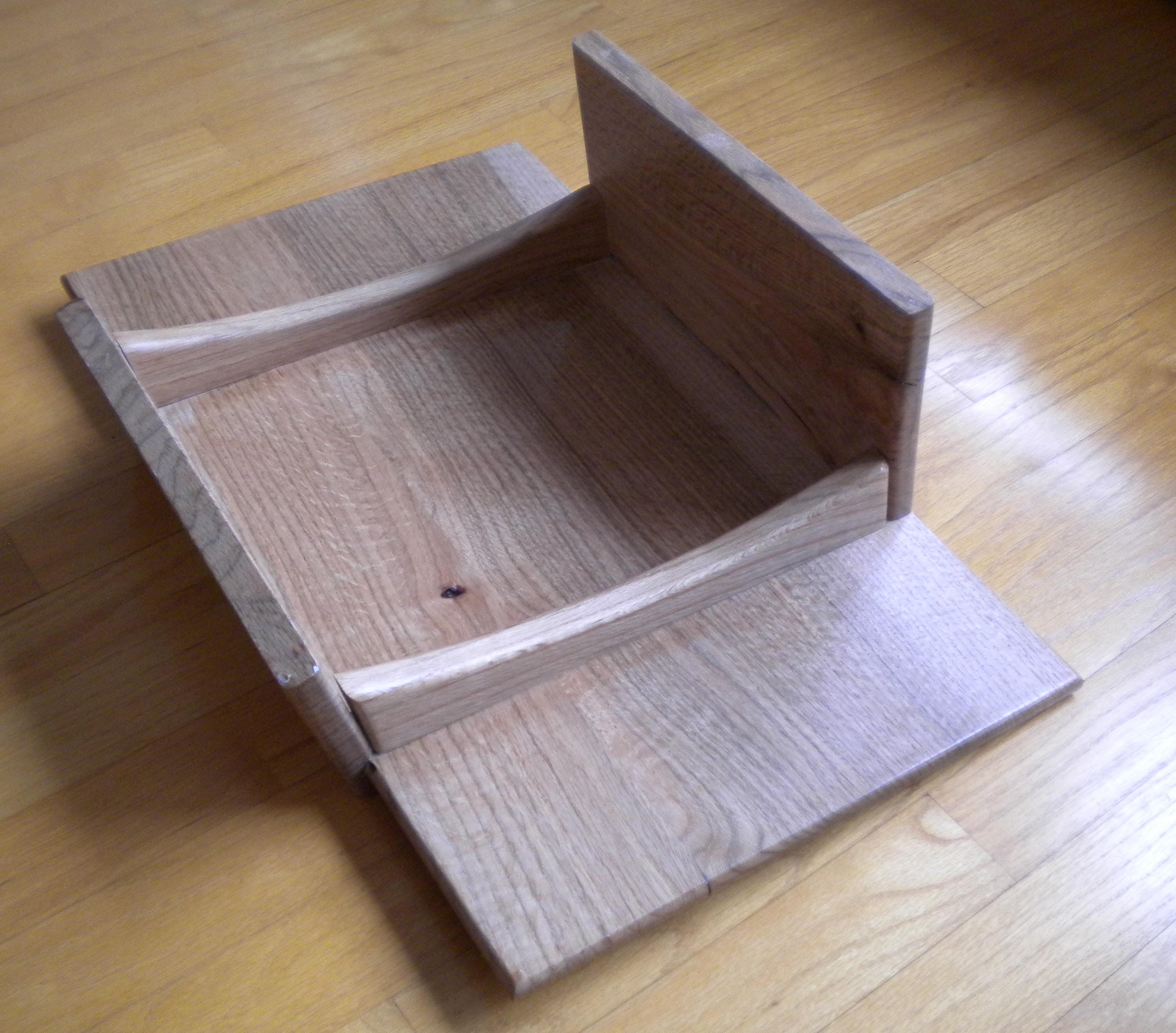

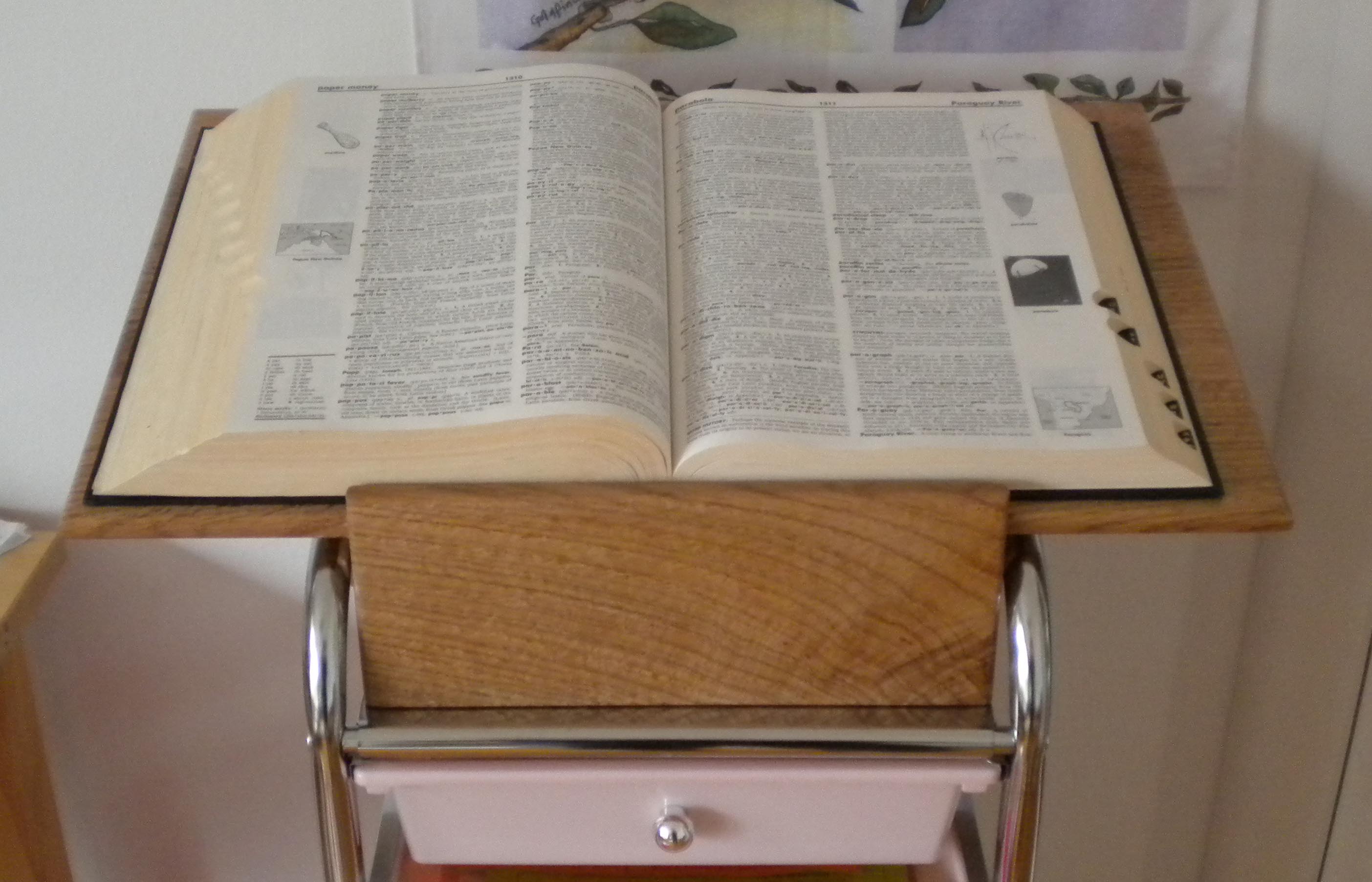

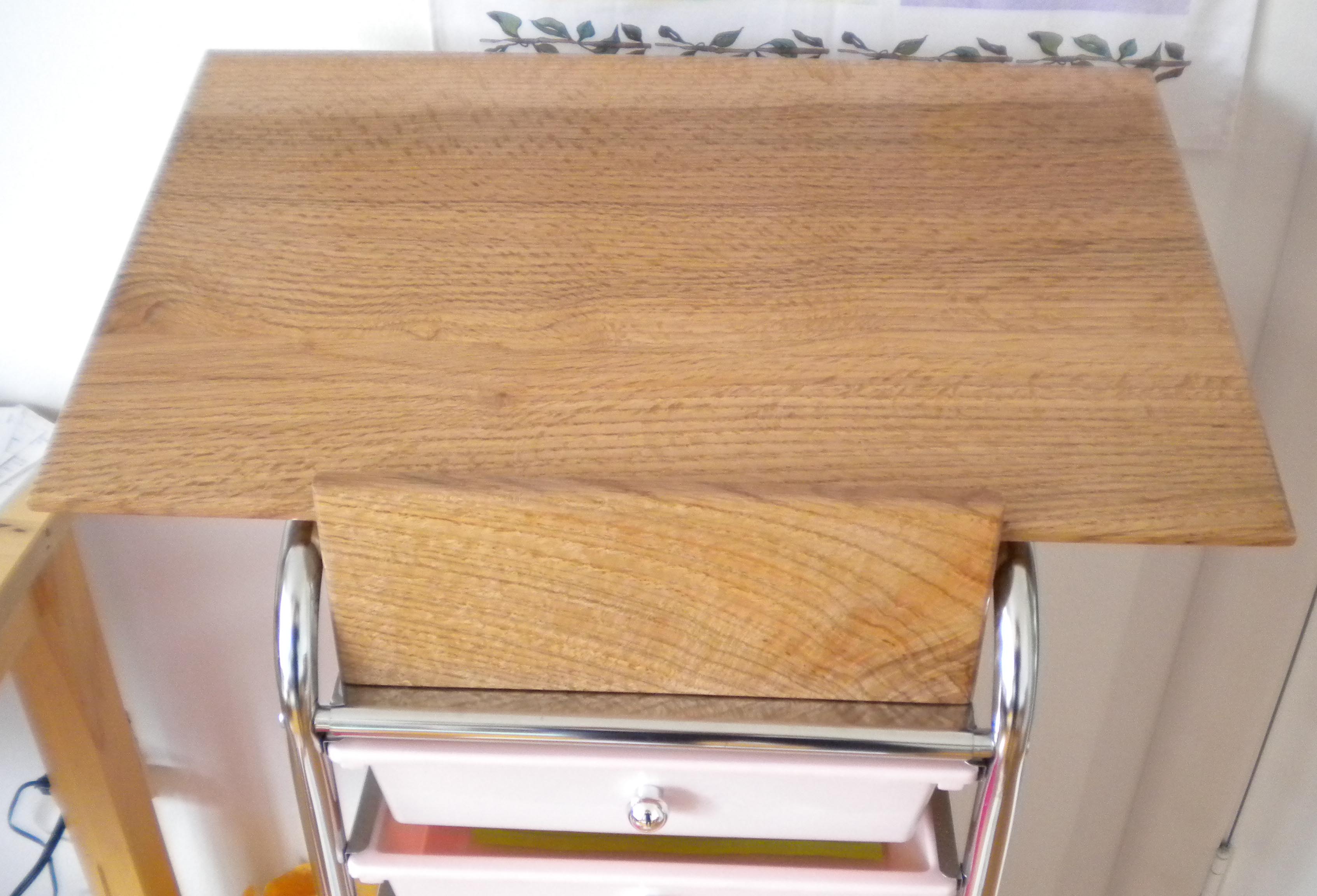

My wife wanted a book stand for a big dictionary, which fits on her rolling set of drawers, so I made this out of water oak, (red oak) with a water borne urethane finish.

 Very simple, with the parts glued together.


Dave VanDewerker

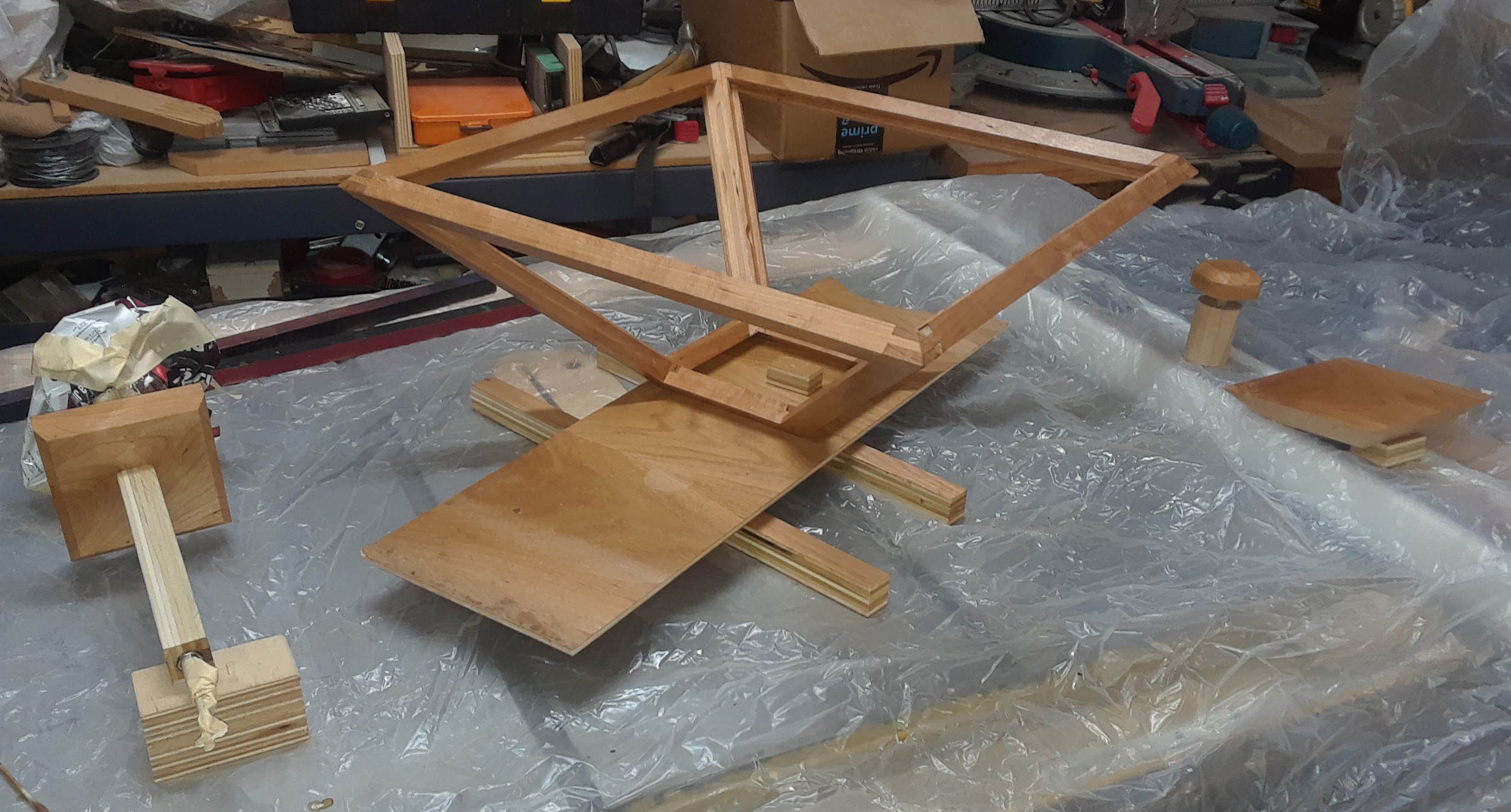

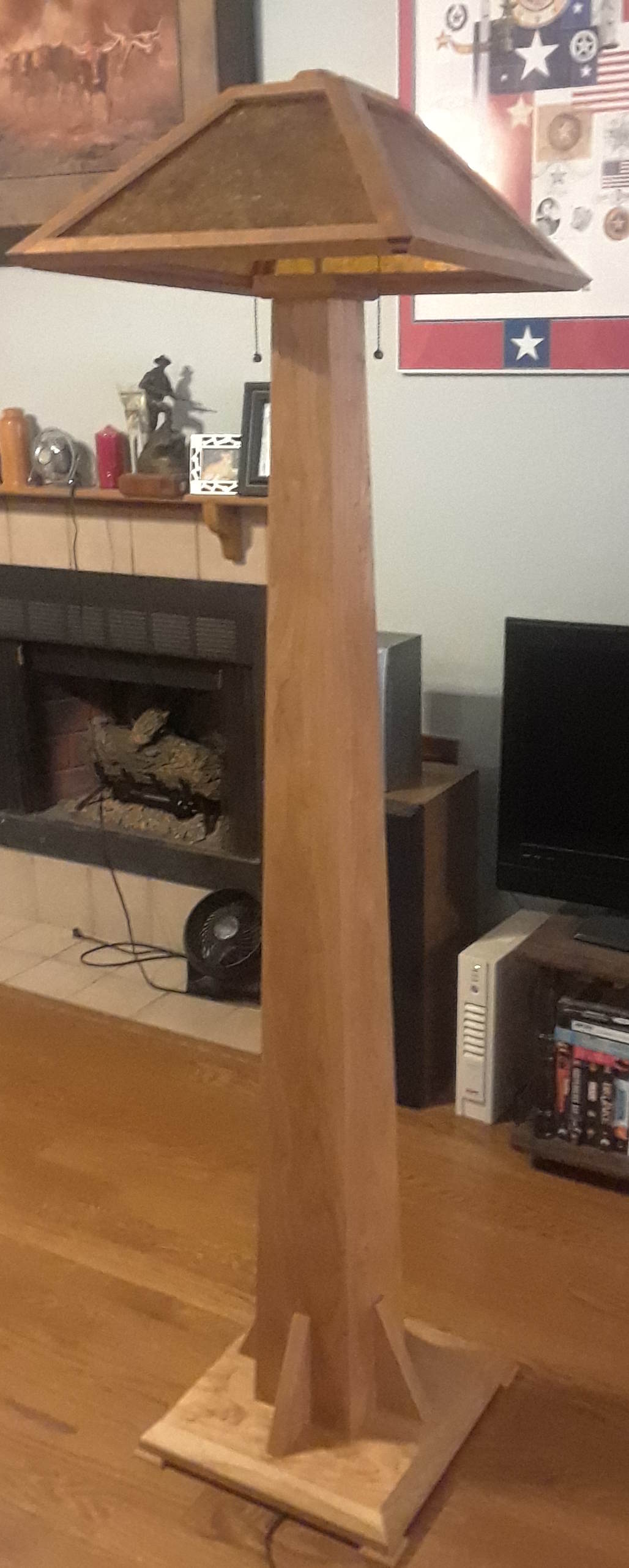

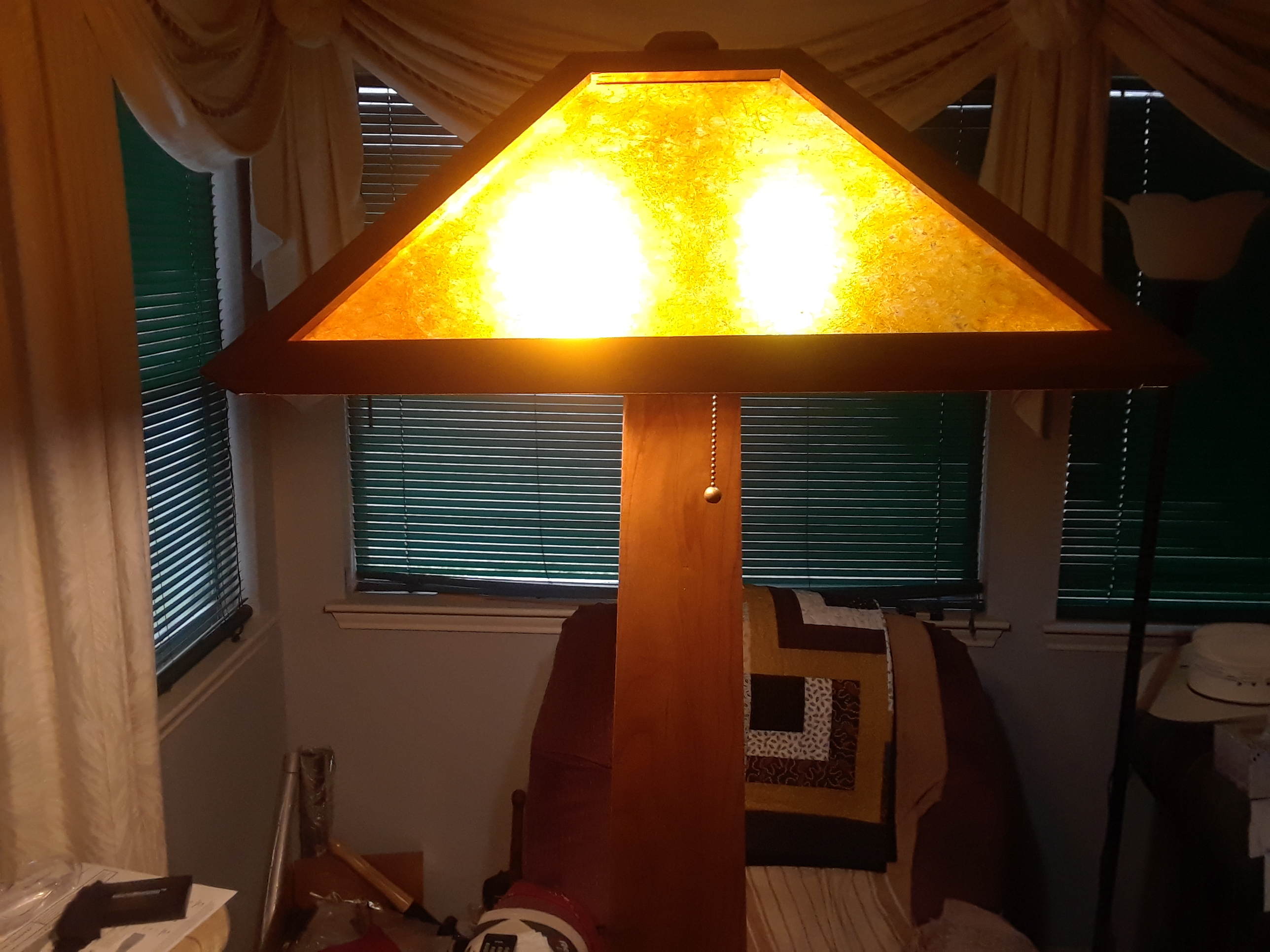

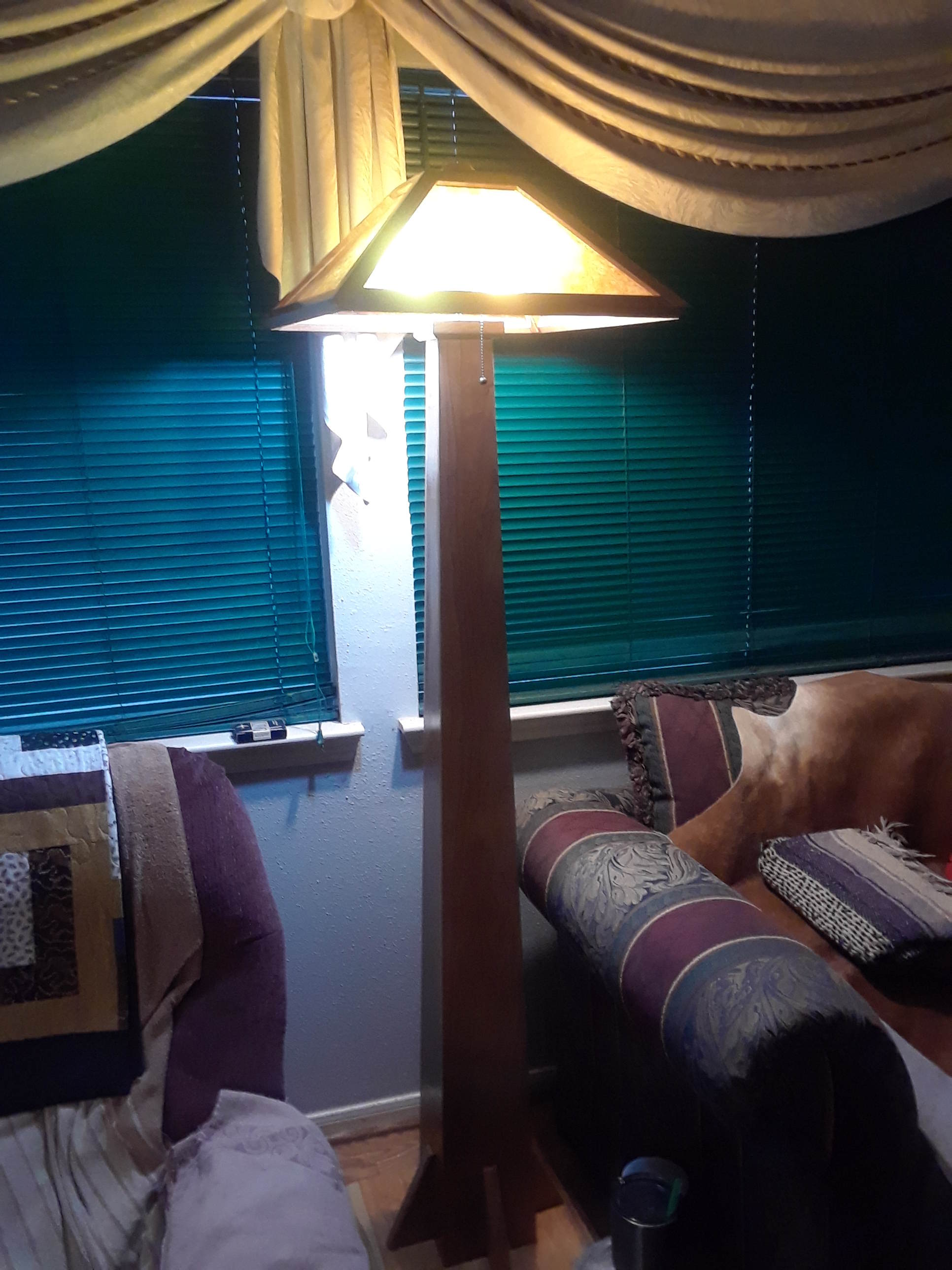

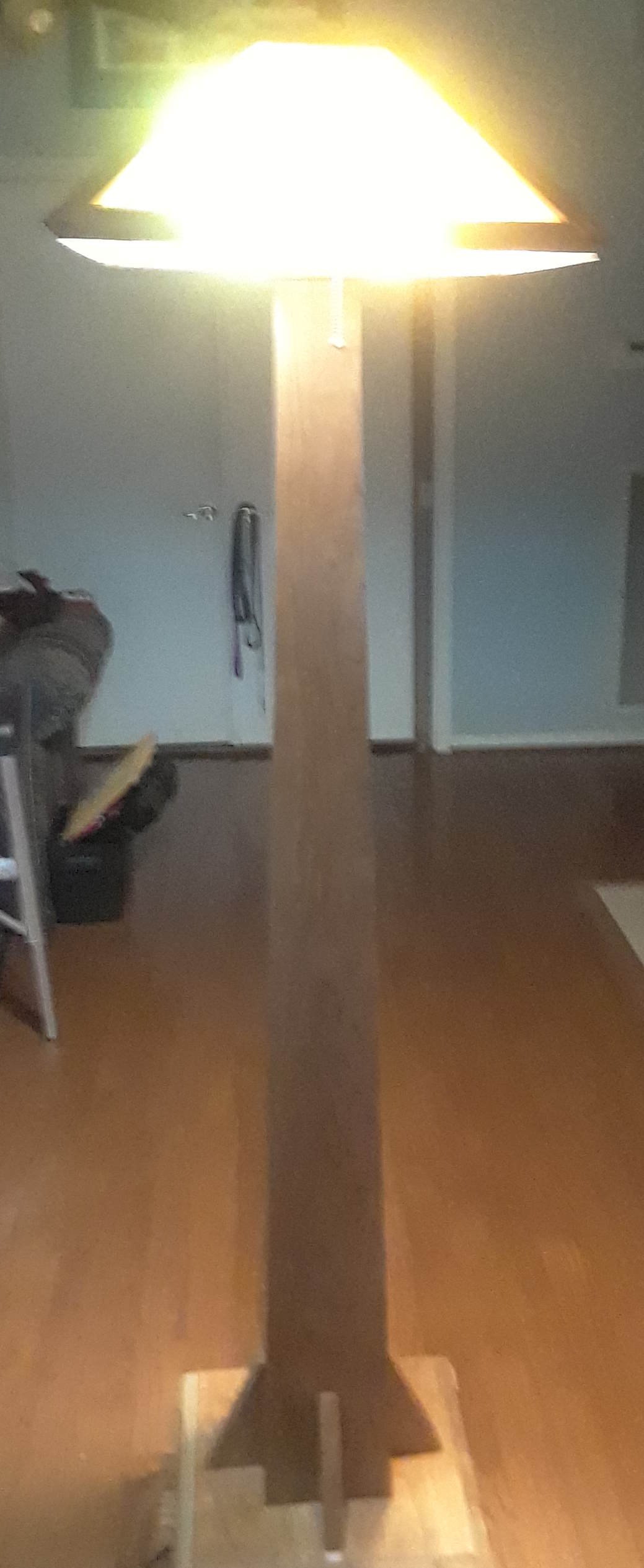

Here is a lamp I made out of cherry and finished with 4 coats of shellac followed by 4 coats of water based poly.

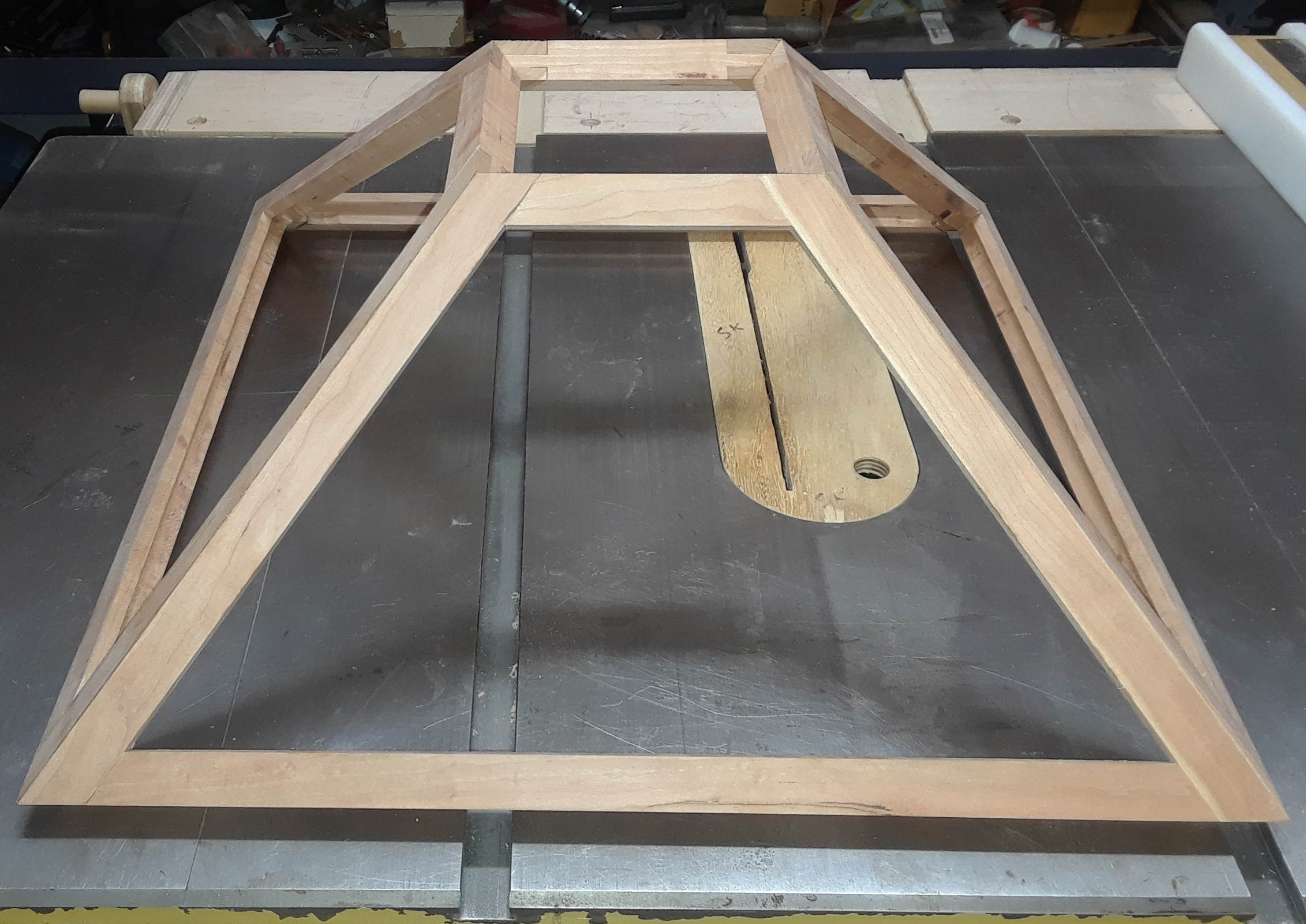

The lamp is just over 6 feet tall, the shade is 20 x 20 at the bottom and 6 x 6 at the top. The shade was taken from a pat-tern is from Woodworkers Journal April 2000, the column and base I designed myself. The mica for the shade is from Ashevillemica.com and is the Clear Am-ber Mica .015. The light fixture is an "S" shaped antique brass dual light with two pull chains.

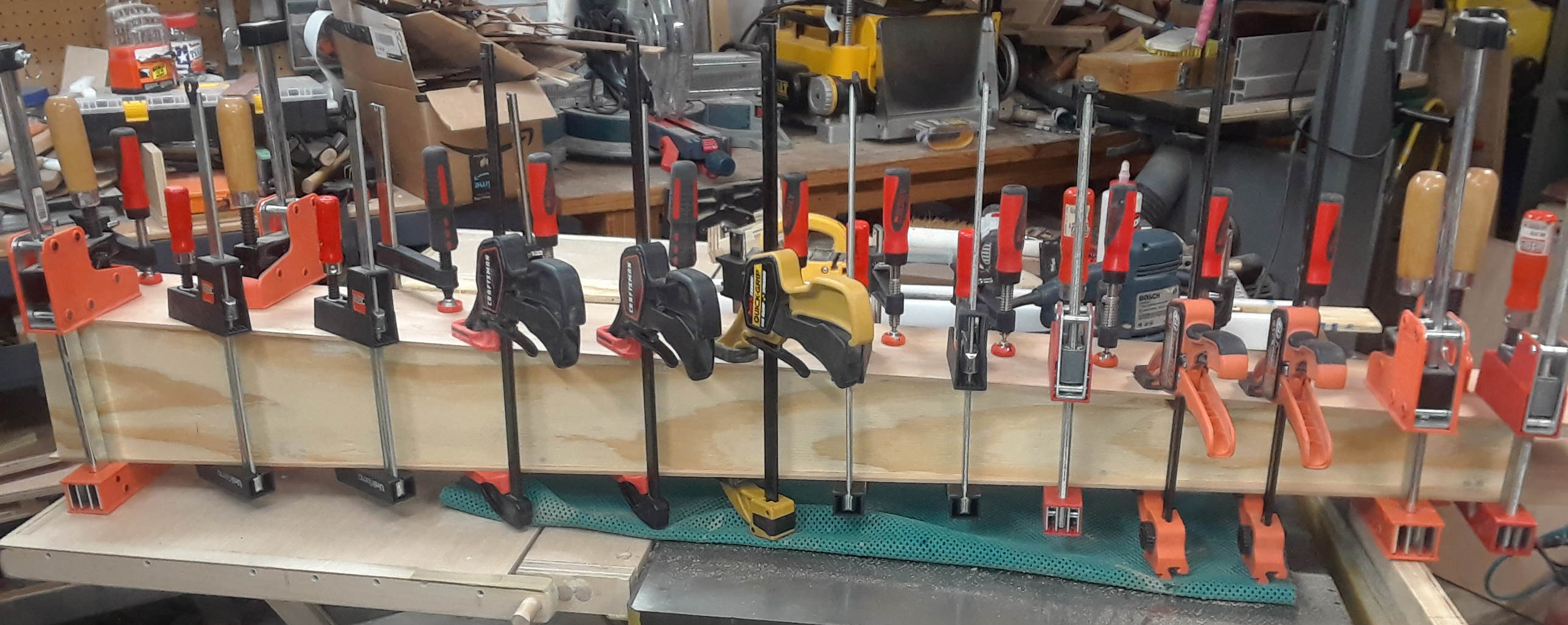

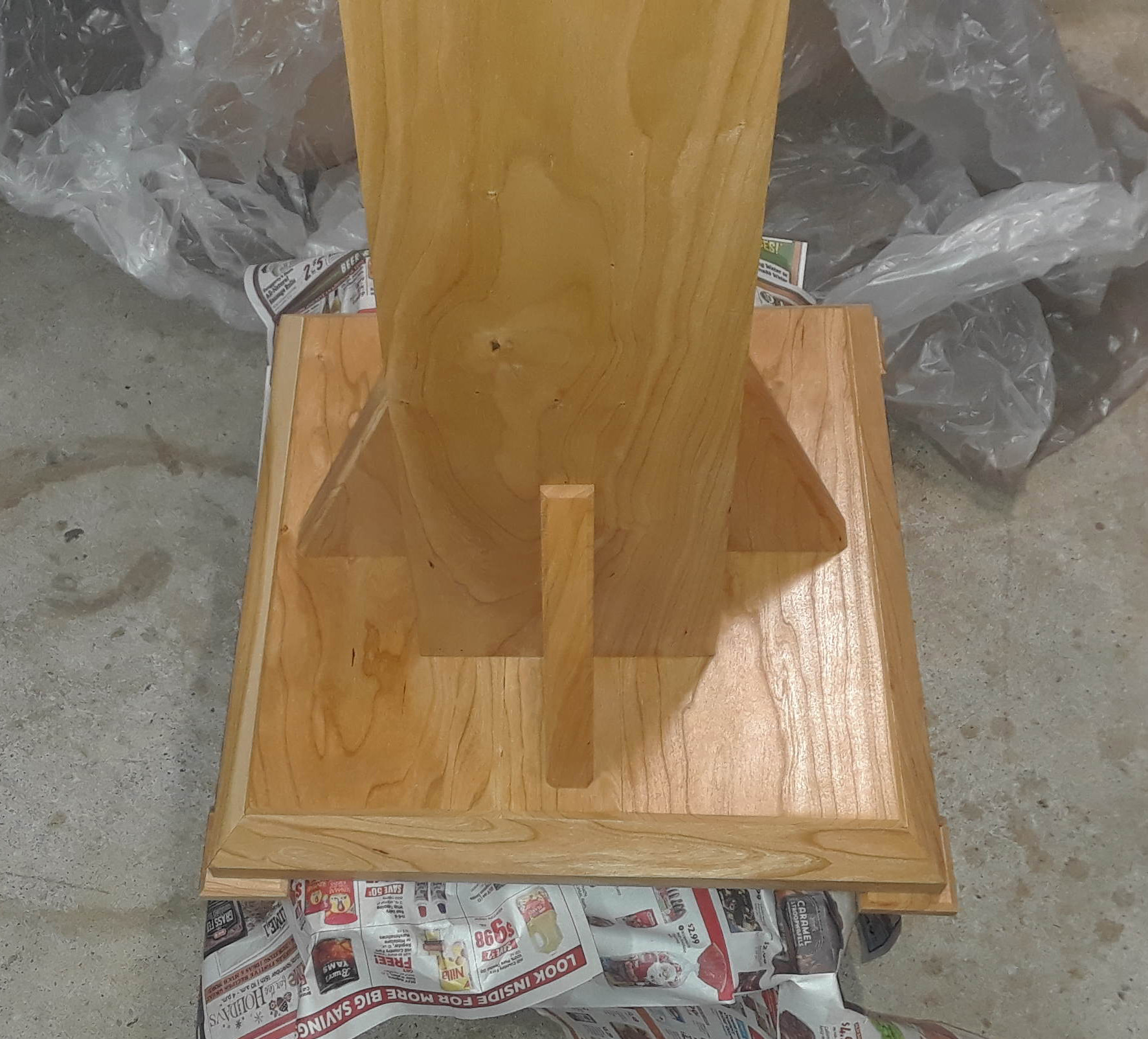

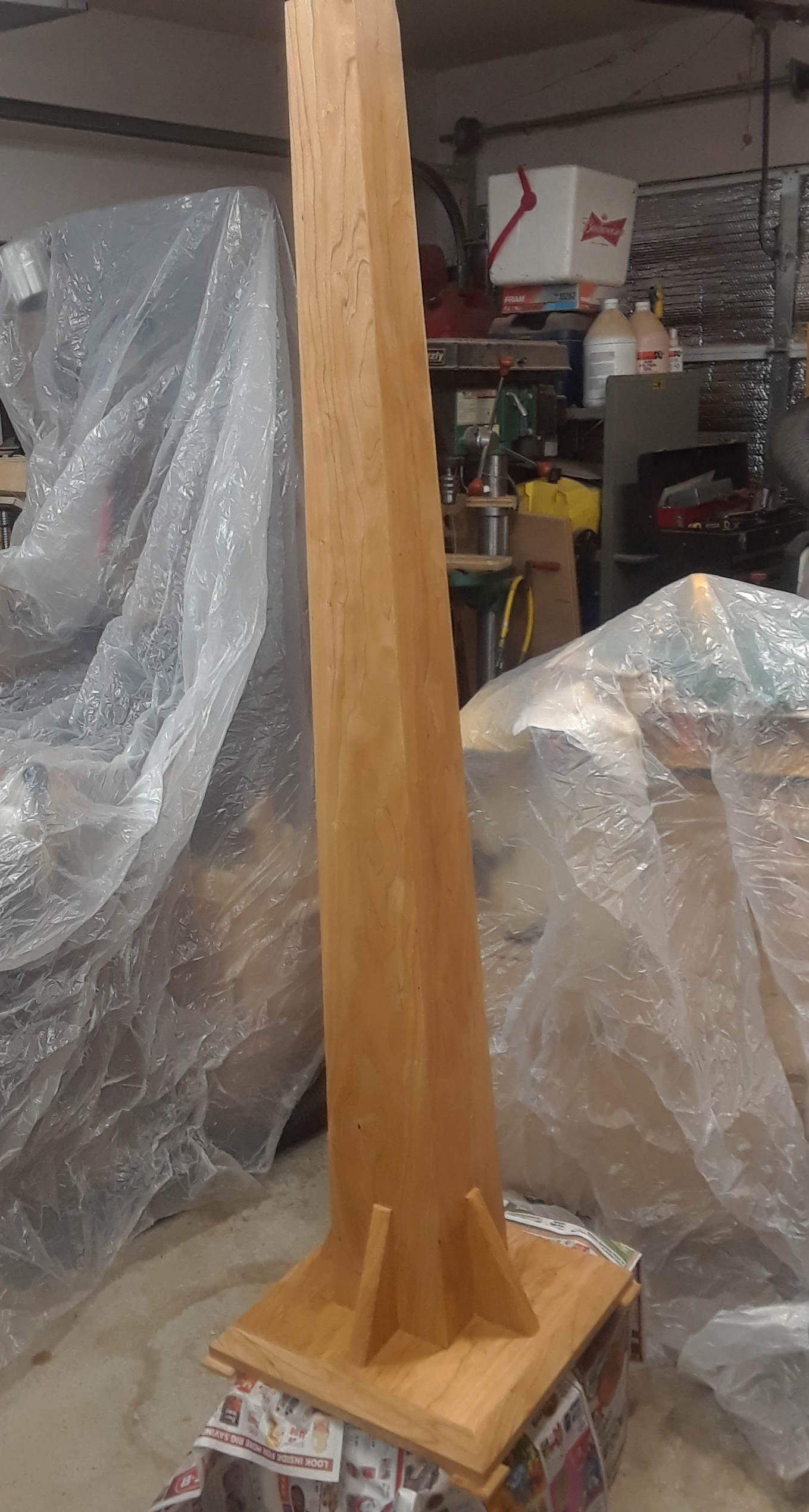

The column is made using 3/8 inch plywood tapered from about 6 1/2 inches at the base to about 2 inches at the top and covered with an 1/8 inch cherry veneer I cut myself. The base of the column has several pieces of 3/4 inch MDF glued up to provide extra weight at the base. The base is made using 2 pieces of MDF glued together that is covered with more of the 1/8 inch cherry veneer and a cherry molding around the edge. I also added a 1/4 inch square piece of cherry at each corner to provide a space for the electrical cord and a nice decorative touch.

George Graves

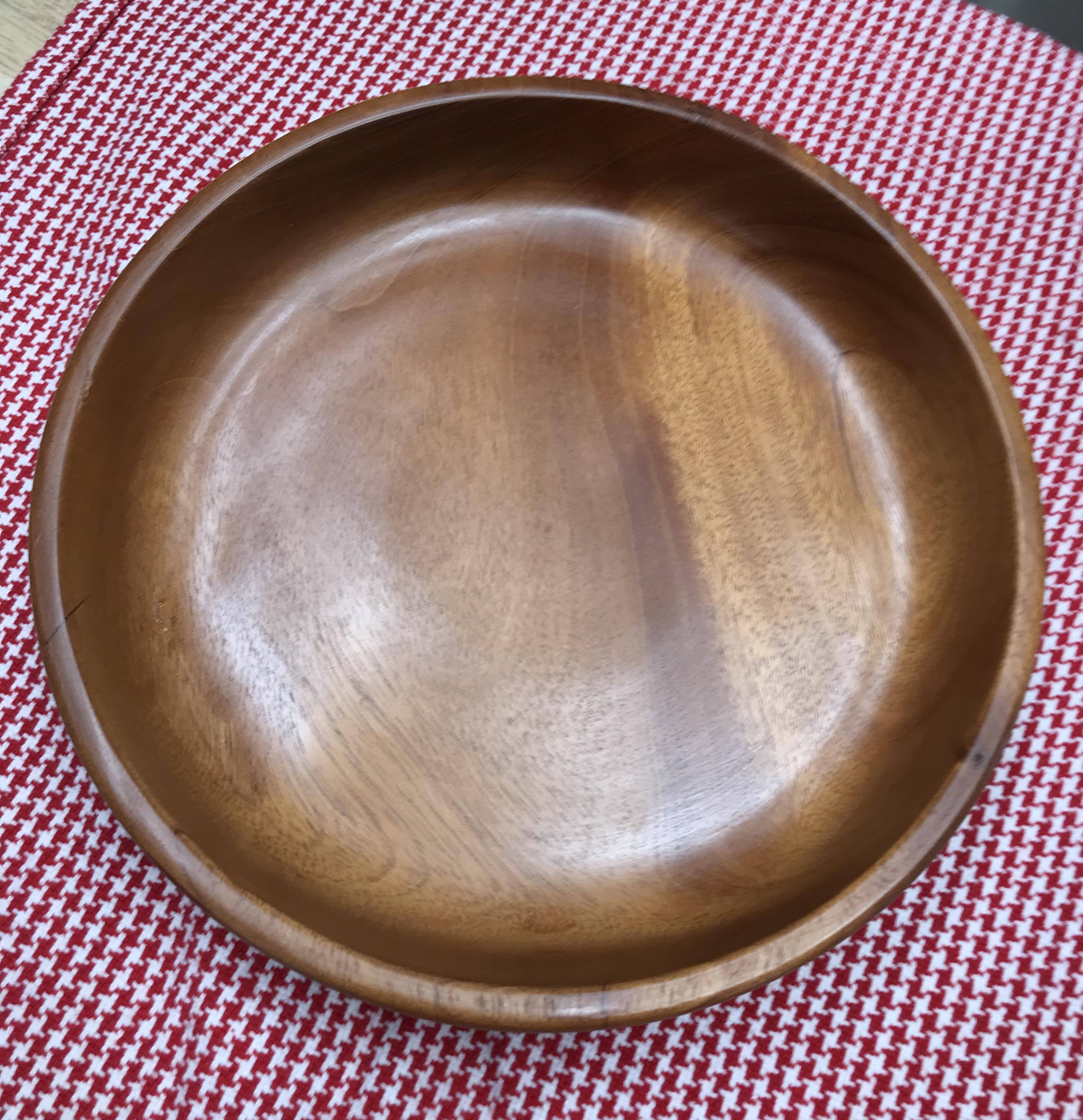

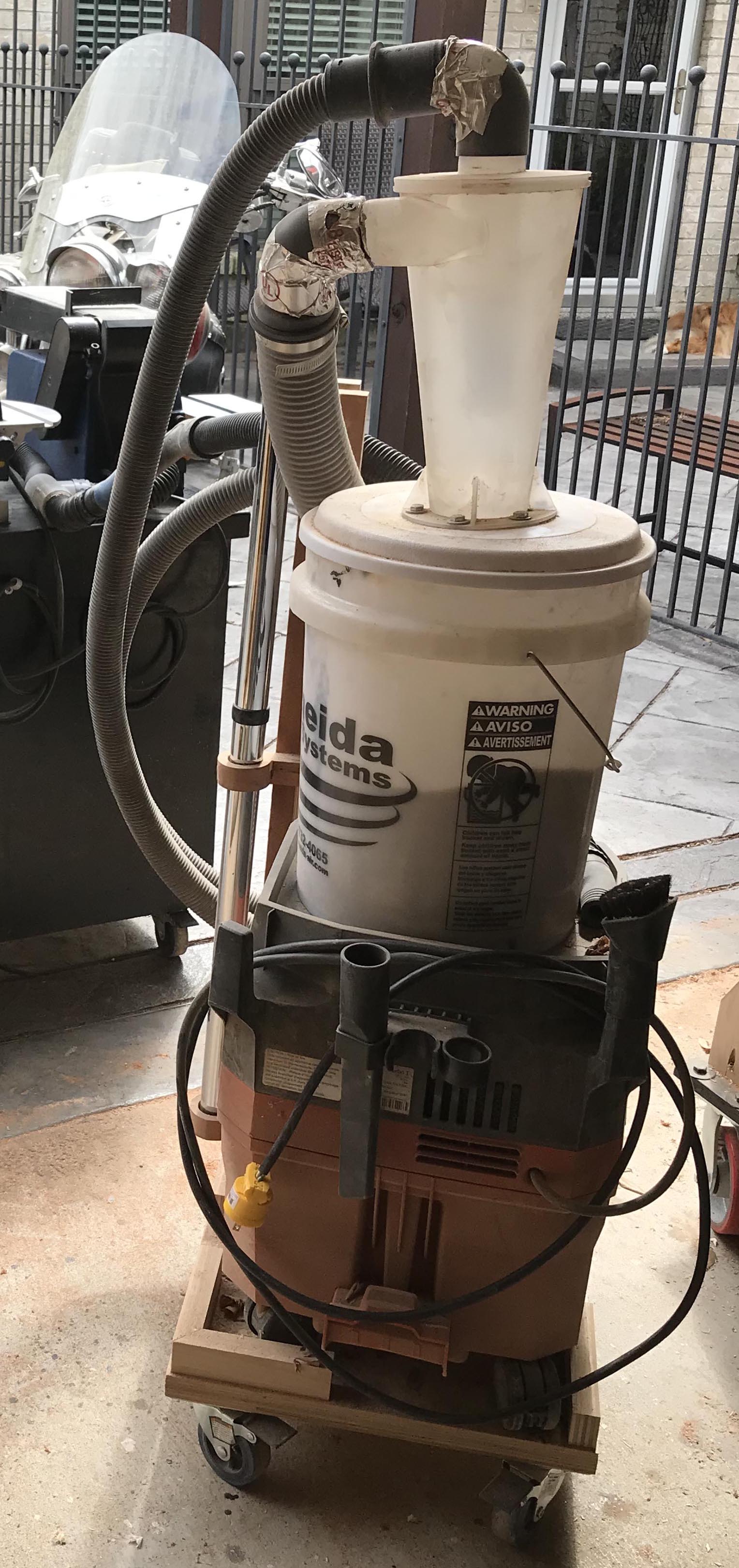

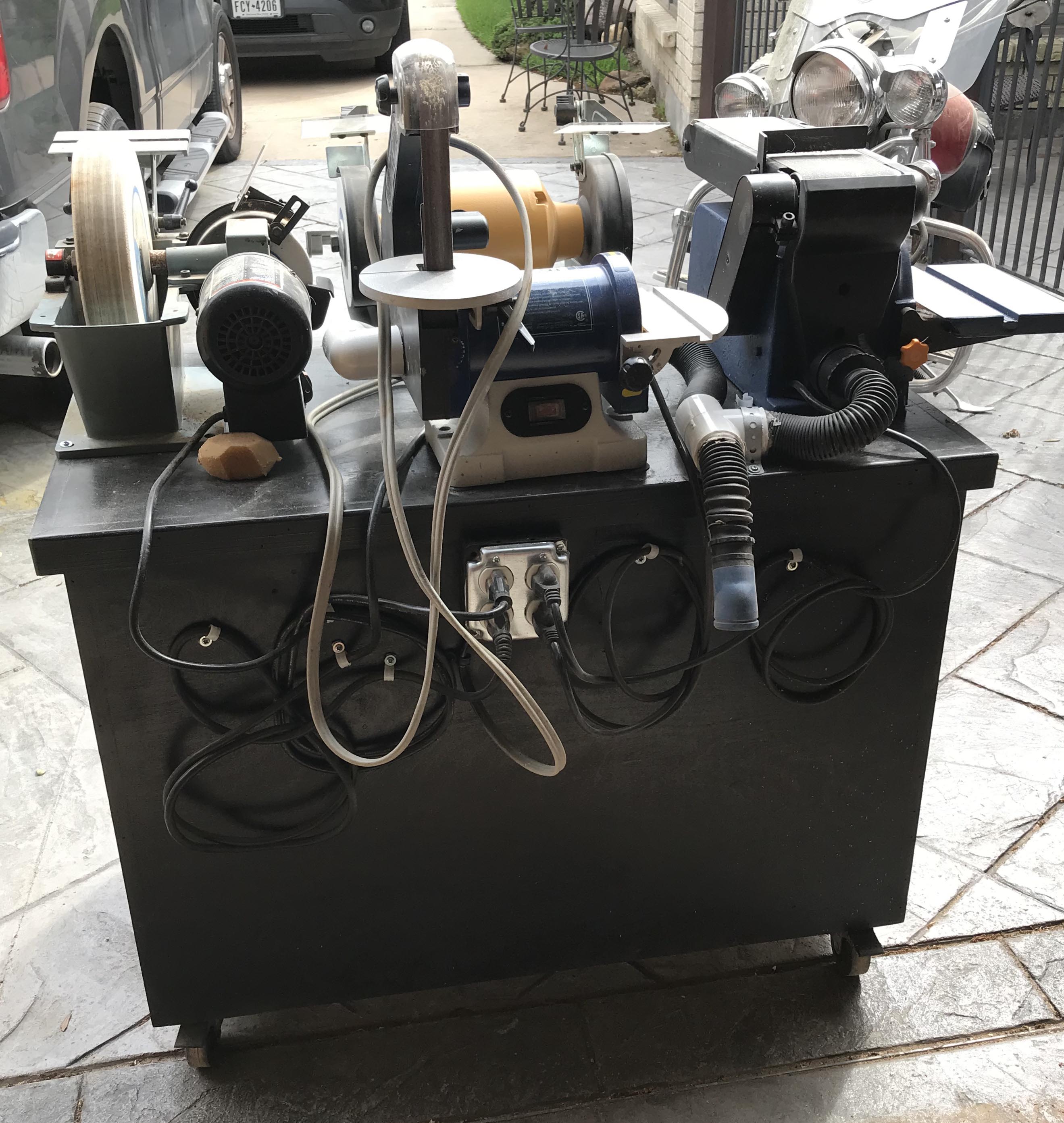

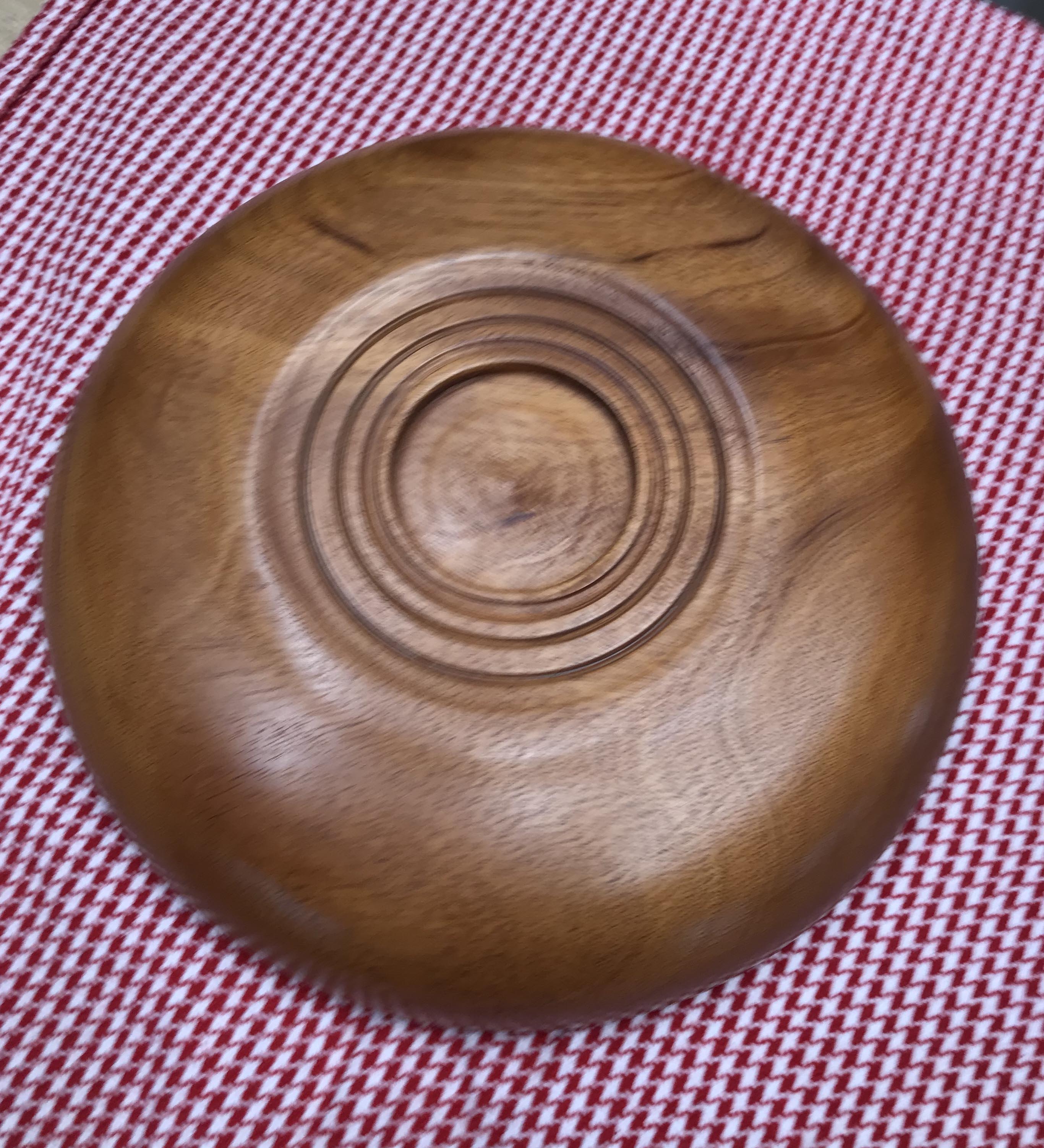

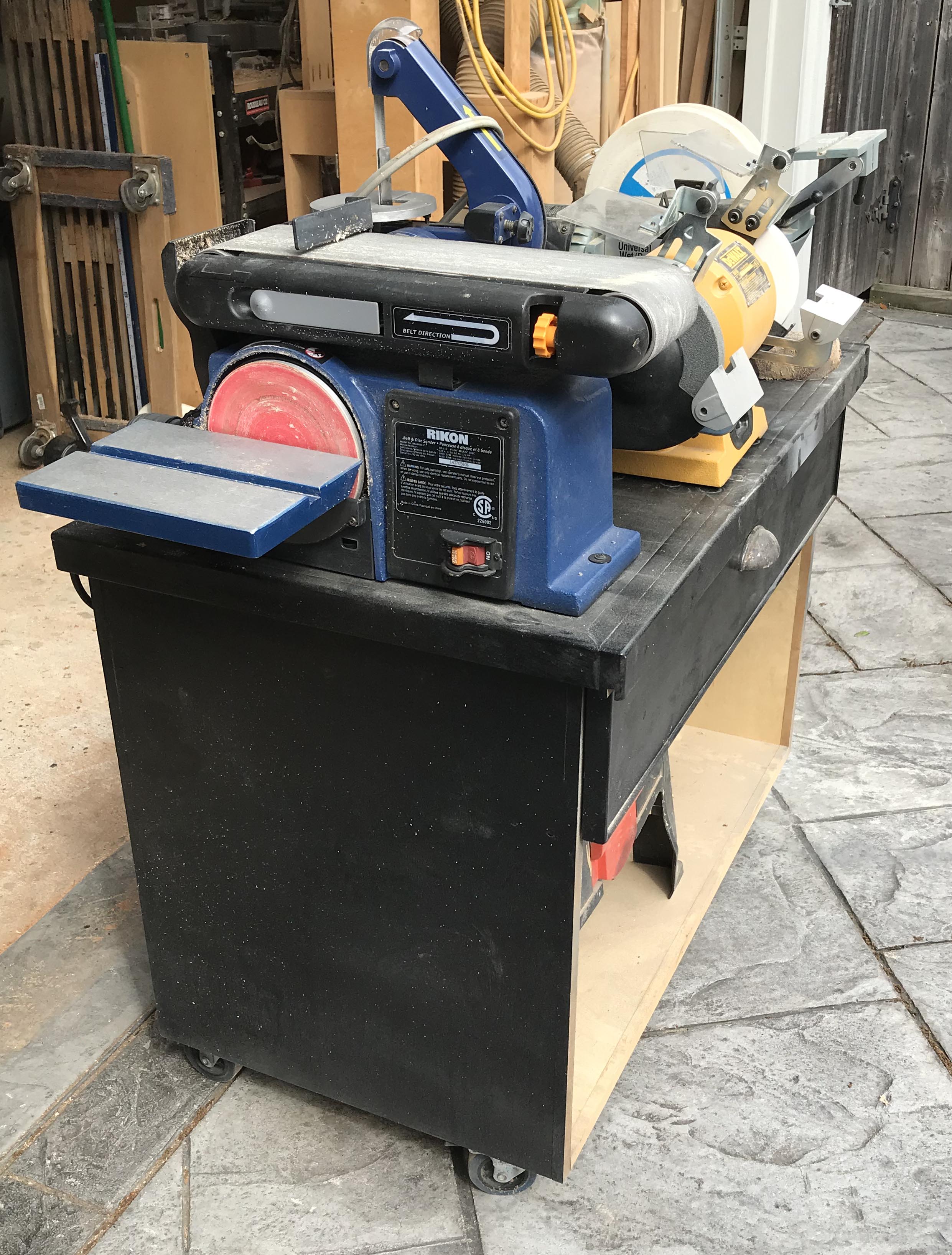

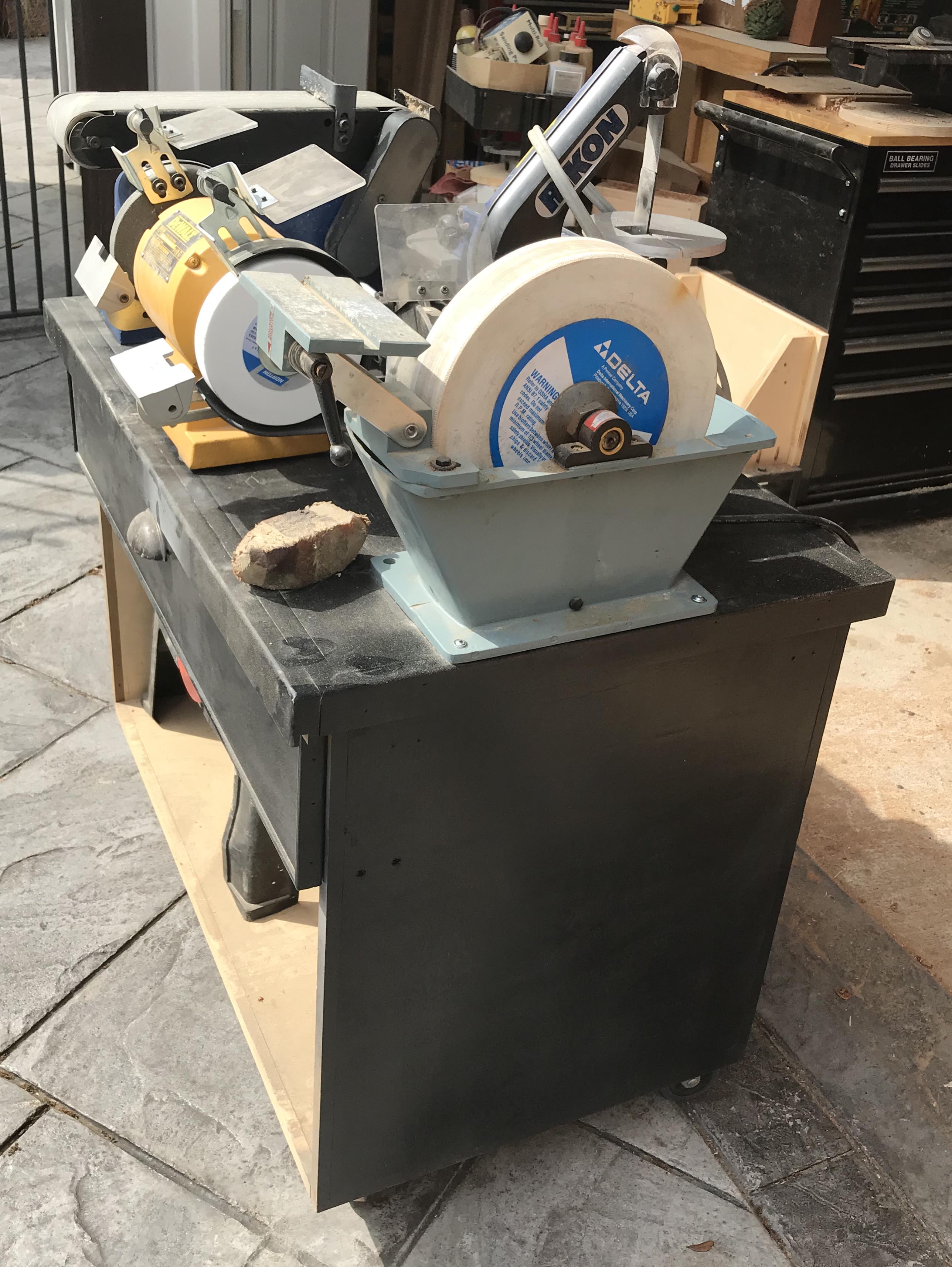

12” x 1 1/2” Mahogany Bowl, Sharpening Station and Mobile Dust Collector

************************************************************************************************************

1Wink Wood: Bob Wink lives near a commercial woodworking facility that gives away what they consider to be scrap pieces of commercial grade plywood and misc hard woods.  Bob rescues this wood before a Grinch comes and takes the scrap for firewood.  Many woodworkers in WWCH have made good use of these excess pieces by making jigs, toys, and incorporating them into their projects as you’ve seen in many Show n Tell projects. This source of wood is what has become known as “Wink” wood

Photos and descriptions by respective contributors except for some commentary by the Webmaster
